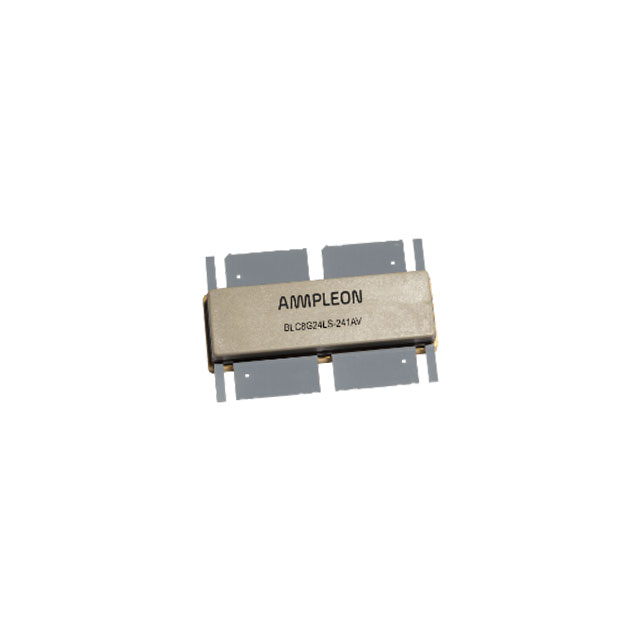

BLC8G24LS-241AVY
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V DFM8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLC8G24LS-241AVY
ObsoleteAmpleon USA Inc.
RF MOSFET LDMOS 28V DFM8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLC8G24LS-241AVY | BLC8 Series |
|---|---|---|
| Configuration | Common Source, Dual | Common Source, Dual |
| Current - Test | - | 1 - 880 mA |
| Current Rating (Amps) | - | 2.8 µA |
| Frequency | - | 1.88 - 791 MHz |
| Frequency | - | 2.03 - 960 MHz |
| Gain | 14.5 dBi | 14 - 17 dBi |
| Mounting Type | Chassis Mount | Surface Mount, Chassis Mount |
| Package / Case | SOT-1252-1 | SOT-1258-7, SOT-1275-1, SOT-1275-3, SOT-1251-3, SOT-1252-1, SOT-1258-3 |
| Power - Output | 56 W | 17.8 - 540 W |
| Supplier Device Package | DFM8 | SOT-1258-7, DFM6, SOT-1275-3, 8-DFM, DFM8 |
| Voltage - Rated | 65 V | 65 V |
| Voltage - Test | 28 V | 28 - 32 V |
BLC8 Series
RF MOSFET LDMOS 32V SOT1258-7
| Part | Supplier Device Package | Current Rating (Amps) | Package / Case | Power - Output | Current - Test | Gain | Mounting Type | Voltage - Rated | Frequency [Min] | Frequency [Max] | Voltage - Test | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. BLC8G09XS-400AVTZ | SOT-1258-7 | 2.8 µA | SOT-1258-7 | 540 W | 880 mA | 17 dBi | Surface Mount | 65 V | 791 MHz | 960 MHz | 32 V | |
Ampleon USA Inc. BLC8G27LS-140AVY | DFM6 | SOT-1275-1 | 28 W | 320 mA | 14.5 dBi | Chassis Mount | 65 V | 2.5 GHz | 2.69 GHz | 28 V | Common Source, Dual | |
Ampleon USA Inc. BLC8G27LS-60AVY | SOT-1275-3 | SOT-1275-3 | Chassis Mount | |||||||||
Ampleon USA Inc. BLC8G27LS-210PVY | 8-DFM | SOT-1251-3 | 65 W | 1.73 A | 17 dBi | Chassis Mount | 65 V | 2.6 GHz | 2.7 GHz | 28 V | Common Source, Dual | |
Ampleon USA Inc. BLC8G24LS-241AVY | DFM8 | SOT-1252-1 | 56 W | 14.5 dBi | Chassis Mount | 65 V | 28 V | Common Source, Dual | ||||
Ampleon USA Inc. BLC8G27LS-210PVZ | 8-DFM | SOT-1251-3 | 65 W | 1.73 A | 17 dBi | Chassis Mount | 65 V | 2.6 GHz | 2.7 GHz | 28 V | Common Source, Dual | |
Ampleon USA Inc. BLC8G22LS-450AVY | DFM6 | SOT-1258-3 | 85 W | 1 A | 14 dBi | Chassis Mount | 65 V | 2.11 GHz | 2.17 GHz | 28 V | Common Source, Dual | |
Ampleon USA Inc. BLC8G22LS-450AVZ | DFM6 | SOT-1258-3 | 85 W | 1 A | 14 dBi | Chassis Mount | 65 V | 2.11 GHz | 2.17 GHz | 28 V | Common Source, Dual | |
Ampleon USA Inc. BLC8G27LS-60AVZ | SOT-1275-3 | SOT-1275-3 | Chassis Mount | |||||||||
Ampleon USA Inc. BLC8G27LS-240AVJ | DFM8 | SOT-1252-1 | 56 W | 14 dBi | Chassis Mount | 65 V | 2.5 GHz | 2.69 GHz | 28 V | Common Source, Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BLC8 Series
RF Mosfet 28 V 500 mA 2.3GHz ~ 2.4GHz 14.5dB 56W DFM8
