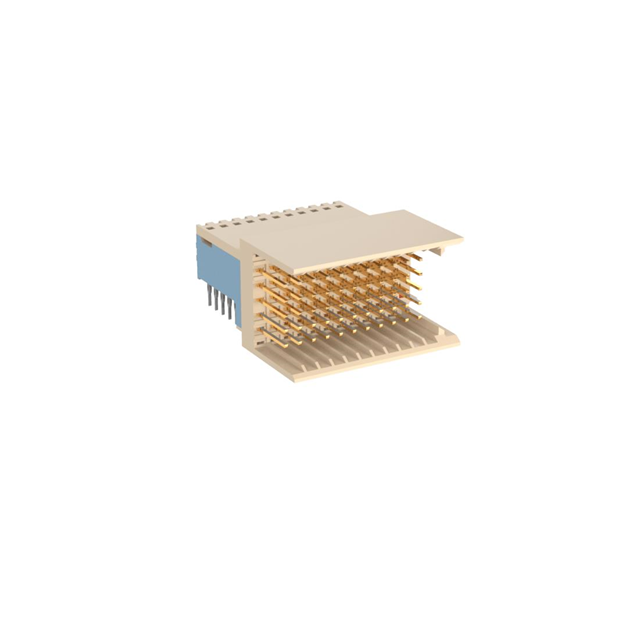

923830-E
ActiveTE Connectivity AMP Connectors
HARD METRIC CONNECTORS ERMC 55 MI 1 L1 * 3,50 A-E V-V 2 * 207 E
923830-E
ActiveTE Connectivity AMP Connectors
HARD METRIC CONNECTORS ERMC 55 MI 1 L1 * 3,50 A-E V-V 2 * 207 E
Description
General part information
- Series
55 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 923830-E |
|---|---|
| Connector Style | C 11 |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 55 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Termination | Press-Fit |
