Specification	OD6015-12HHS02A

Approval Agency	cURus, TUV
Bearing Type	Sleeve
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	PBT, Polybutylene Terephthalate
Material - Frame	Polybutylene Terephthalate (PBT)
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Width	15 mm

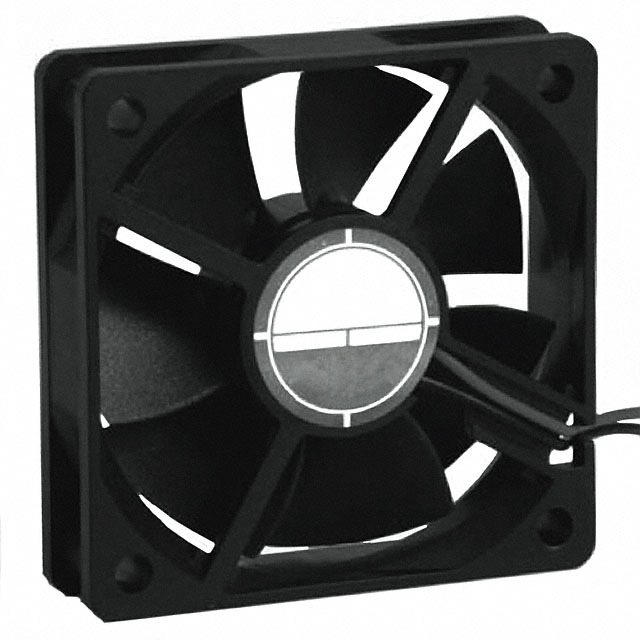

OD6015 Series

...

Part	Material - Blade	Material - Frame	Voltage - Rated	Width	Bearing Type	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Termination Leads Count	Termination Type	Termination	Approval Agency	Fan Type	Operating Temperature (Max)	Operating Temperature (Min)	Features	Static Pressure	Power (Watts)	Weight	RPM	Air Flow	Noise	Lifetime	Current Rating
ORION FANS OD6015-05HHSS	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	5 VAC	15 mm	Sealed Sleeve	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	cURus TUV	Tubeaxial
ORION FANS OD6015-24MB01A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	24 VAC	15 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial	167 °F	-4 °F	Speed Sensor (Tach)
ORION FANS OD6015-05HHSS01A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	5 VAC	15 mm	Sealed Sleeve	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial			Speed Sensor (Tach)
ORION FANS OD6015-05LS02A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	5 VAC	15 mm	Sleeve	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial			Locked Rotor Sensor
ORION FANS OD6015-05HHB	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	5 VAC	15 mm	Ball	60 mm	Square	60 mm	2 leads	Wire Leads	2 Wire Leads	cURus TUV	Tubeaxial	167 °F	-4 °F	Auto Restart
ORION FANS OD6015-12MSS02A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	12 VAC	15 mm	Sealed Sleeve	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial			Locked Rotor Sensor
ORION FANS OD6015-05MB01A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	5 VAC	15 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial	158 °F	14 °F	Auto Restart Speed Sensor (Tach)	0.12 in H2O	900 mW	0.079 lb	3900 RPM	14 CFM	29 dB	60000 Hrs	0.18 A
ORION FANS OD6015-12HHS01A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	12 VAC	15 mm	Sleeve	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial			Speed Sensor (Tach)
ORION FANS OD6015-12LSS01A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	12 VAC	15 mm	Sealed Sleeve	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial			Speed Sensor (Tach)
ORION FANS OD6015-05LLB01A	PBT Polybutylene Terephthalate	Polybutylene Terephthalate (PBT)	5 VAC	15 mm	Ball	60 mm	Square	60 mm	3	Wire Leads	3 Wire Leads	cURus TUV	Tubeaxial	167 °F	-4 °F	Speed Sensor (Tach)
