76000914
ObsoleteDigi International

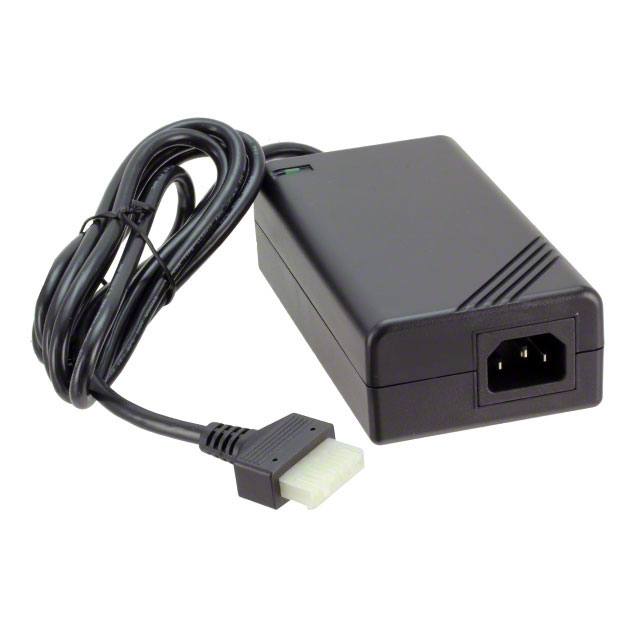

AC/DC DSKTP ADAPTER 5V +/-12 43W
76000914
ObsoleteDigi International
AC/DC DSKTP ADAPTER 5V +/-12 43W
Description
General part information
76000914
5V, 12V, -12V 43 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 76000914 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, PSE, UL |
| Cord Length | 72 in |
| Current - Output (Max) Options | 500mA, 1A, 5A |
| Efficiency | 75 % |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 43 W |
| Region Utilized | International |
| Size / Dimension Height | 1.61 in |
| Size / Dimension Length | 5.51 in |
| Size / Dimension Width | 2.95 in |
| Voltage - Input (AC) Maximum | 254 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V, -12 V, 5 VDC |
| Weight | 1.102 lb |
