000-49000

Active

AMPHENOL RF

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-49000	000-49 Series

Body Finish	Silver	Nickel, Silver
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Silver	Gold, Silver
Connector Style	N Type	N Type
Connector Type	Male Pin, Receptacle	Male Pin, Receptacle
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Copolymer	Polytetrafluoroethylene (PTFE), Copolymer
Frequency - Max [Max]	11 GHz	11 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Ingress Protection	Weatherproof	Weatherproof
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -55 ░C
Shield Termination	Solder	Solder
Voltage Rating	1500 V	1500 V

CONN N RCPT STR 50 OHM SOLDER

Part	Center Contact Plating	Contact Termination	Mating Cycles	Number of Ports	Frequency - Max [Max]	Connector Style	Connector Type	Body Material	Mounting Feature	Center Contact Material	Shield Termination	Impedance	Ingress Protection	Housing Color	Voltage Rating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish
AMPHENOL RF 000-49000-RFX	Gold	Solder Cup	500	1	11 GHz	N Type	Male Pin, Receptacle	Brass	Flange	Brass	Solder	50 Ohms	Weatherproof	Silver	1500 V	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Nickel
AMPHENOL RF 000-49000	Silver	Solder Cup	500	1	11 GHz	N Type	Male Pin, Receptacle	Brass	Flange	Brass	Solder	50 Ohms	Weatherproof	Silver	1500 V	Copolymer	-55 °C	85 °C	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

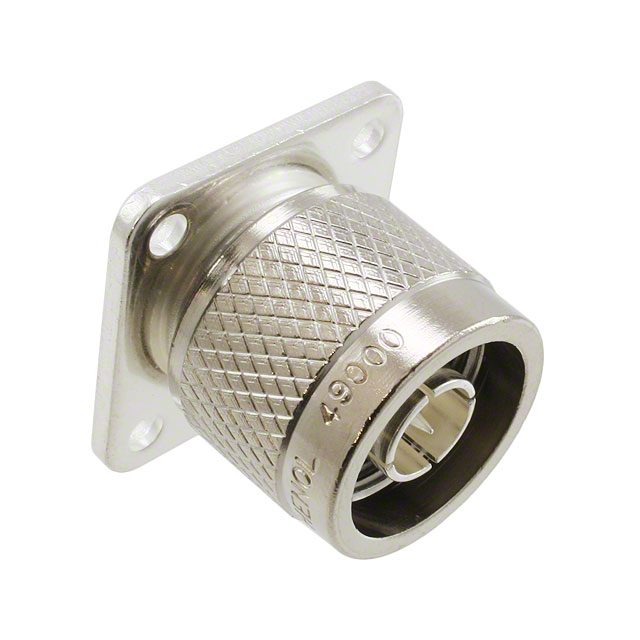

N Type Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
