Description
General part information

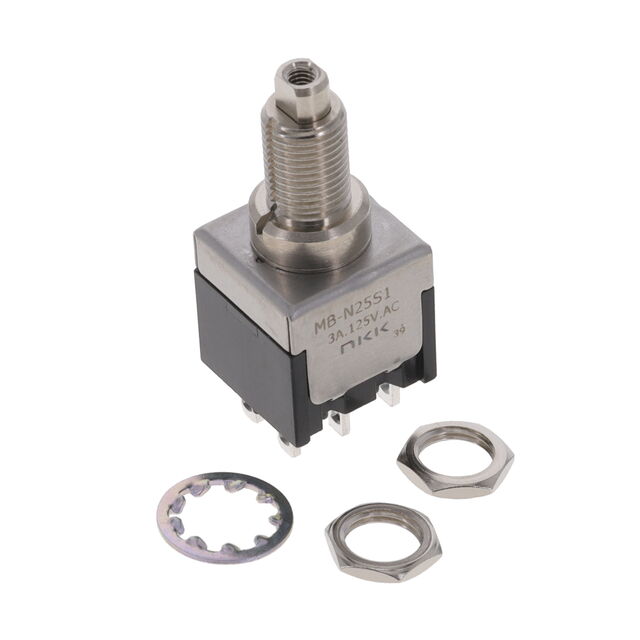

MBN25SS1W01
Pushbutton Switch DPDT Standard Panel Mount, Rear
Technical Specifications
Parameters and characteristics for this part
| Specification | MBN25SS1W01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | DPDT |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 25000 |
| Mechanical Life (Cycles) | 50000 Cycles |
| Mounting Type | Rear, Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 6.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
