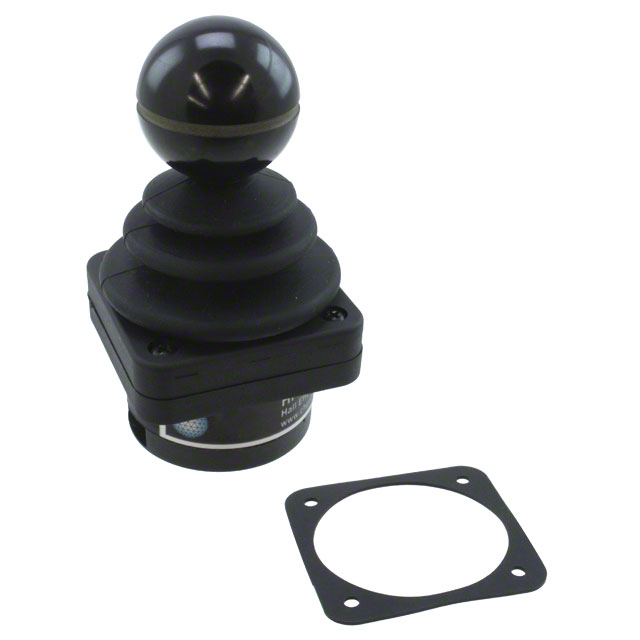

HF10S10
Joystick, 2 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | HF10S10 |
|---|---|
| Actuator Type | Ball Tip |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 280 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Diameter | 41.28 mm |
| Panel Cutout Shape | Circular |
| Switch Function | 360° Directional |
| Termination Style | Connector |
| Type | Joystick, 2 - Axis |
| Voltage - Supply | 5 VDC |
