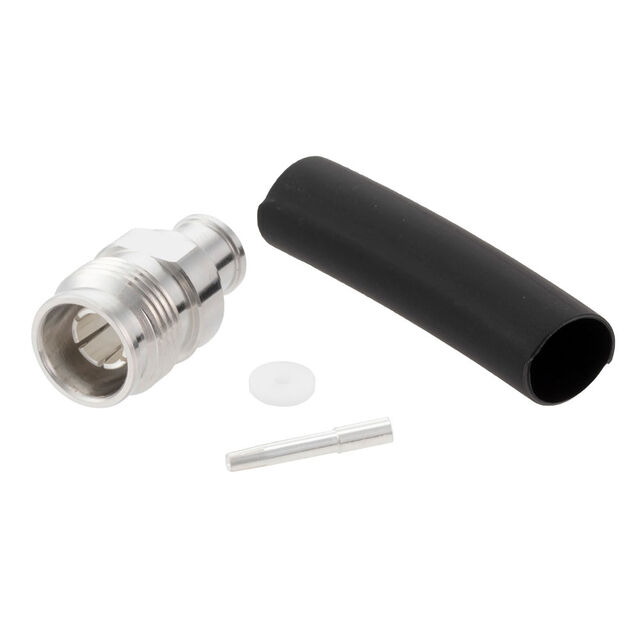

FMCN1715
ObsoleteFairview Microwave
CONN JACK SOLDER/SOLDER 2.2-5
FMCN1715
ObsoleteFairview Microwave
CONN JACK SOLDER/SOLDER 2.2-5
Description
General part information
FMCN1715
2.2/5 Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN1715 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Silver |
| Connector Style | 2.2/5 |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
