Z22C-SS
ActivePanduit Corp
24 X 24 PRE-CONFIGURED INDUSTRIAL ZONE E
Deep-Dive with AI
Search across all available documentation for this part.
Z22C-SS
ActivePanduit Corp
24 X 24 PRE-CONFIGURED INDUSTRIAL ZONE E
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Z22C-SS | Z22C Series |
|---|---|---|
| - | - | |
| Area (L x W) | 278 in˛ | 278 in˛ |
| Area (L x W) | 1796 cm˛ | 1796 cm˛ |
| Color | Gray | Gray |
| Container Type | Enclosure | Box, Enclosure |
| Design | Hinged Door | Hinged Door |
| Height [z] | 28 in | 24 - 28 in |
| Height [z] | 711.2 mm | 609.6 - 711.2 mm |
| Material | Metal, Steel | Metal, Steel |
| Ratings | IP66, NEMA 4X | IP66, NEMA 4X |
| Size / Dimension [x] | 11.6 " | 11.6 - 24 in |
| Size / Dimension [x] | 294.64 mm | 294.64 - 609.6 mm |
| Size / Dimension [y] | 24 " | 11.6 - 24 " |
| Size / Dimension [y] | 609.6 mm | 294.64 - 609.6 mm |
Z22C Series
24 X 24 PRE-CONFIGURED INDUSTRIAL ZONE E
| Part | Area (L x W) | Area (L x W) | Height [z] | Height [z] | Ratings | Design | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Container Type | Color | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panduit Corp Z22C-S | 278 in˛ | 1796 cm˛ | 609.6 mm | 24 in | IP66 | Hinged Door | 294.64 mm | 24 in | 609.6 mm | 11.6 " | Box | Gray | Metal, Steel |
Panduit Corp Z22C-FS | |||||||||||||
Panduit Corp Z22C-SS | 278 in˛ | 1796 cm˛ | 711.2 mm | 28 in | IP66, NEMA 4X | Hinged Door | 609.6 mm | 11.6 " | 294.64 mm | 24 " | Enclosure | Gray | Metal, Steel |
Panduit Corp Z22C-6S | 278 in˛ | 1796 cm˛ | 711.2 mm | 28 in | IP66, NEMA 4X | Hinged Door | 609.6 mm | 11.6 " | 294.64 mm | 24 " | Enclosure | Gray |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Z22C Series

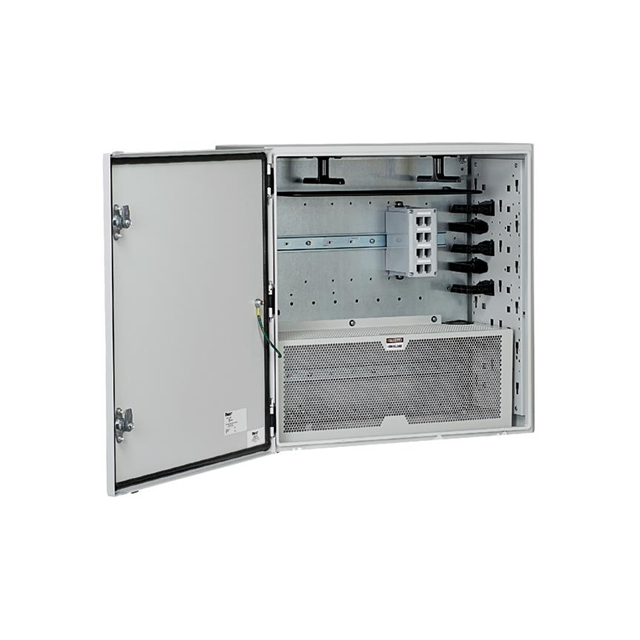

Enclosure Metal, Steel Gray Hinged Door 11.600" L x 24.000" W (294.64mm x 609.60mm) X 28.000" (711.20mm)
