3PN1210B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 60HZ, 120V, 120V

Deep-Dive with AI

Search across all available documentation for this part.

Documents3PN1210B Drawing Datasheet +1

3PN1210B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 60HZ, 120V, 120V

Deep-Dive with AI

Documents3PN1210B Drawing Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3PN1210B

Constant Current Load - Max	1.44 kVA
Constant Current Load - Max [Max]	12 A
Input Type	Plug, 6' Cord
Output Type	Receptacle
Size [x]	6.96 in
Size [x]	176.78 mm
Size [y]	4.62 in
Size [y]	117.35 mm
Size [z]	5.5 in
Size [z]	139.7 mm
Type	Bench
Voltage - Output	120 VAC
Voltage - Supply	120 VAC

3PN1210 Series

VARIABLE, PLUG IN, 60HZ, 120V, 120V

Part	Constant Current Load - Max [Max]	Constant Current Load - Max	Voltage - Supply	Voltage - Output	Output Type	Input Type	Type	Size [z]	Size [z]	Size [y]	Size [x]	Size [x]	Size [y]
Staco Energy Products Company 3PN1210B	12 A	1.44 kVA	120 VAC	120 VAC	Receptacle	6' Cord, Plug	Bench	5.5 in	139.7 mm	4.62 in	6.96 in	176.78 mm	117.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 730.00
Newark	Each	1	$ 803.88
		5	$ 780.78
		10	$ 757.68
		25	$ 697.62
		50	$ 683.76

Description

General part information

3PN1210 Series

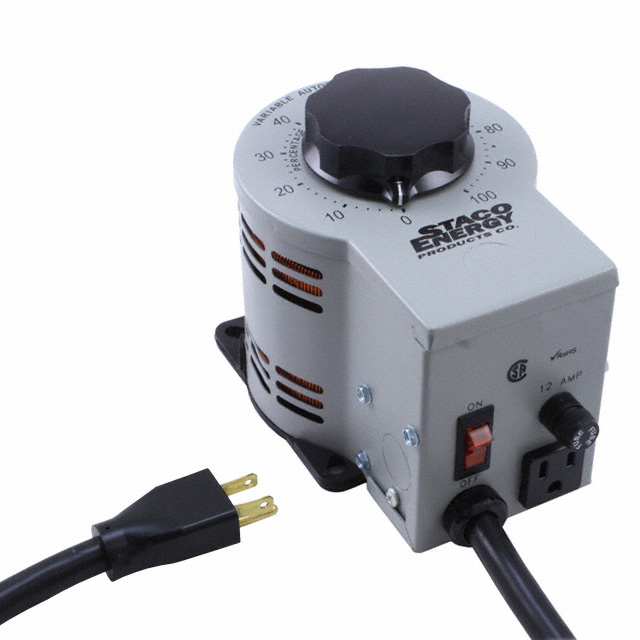

The 3PN1210B is a 12A 120V Variable Transformer with ventilated steel case, Cord & Plug Series, input line cord and plug, fused NEMA rated output receptacle and an illuminated on/off switch. They are connected for output voltage increase with a clockwise rotation and the dials are graduated from 0 to 100% of the voltage setting.

Documents

Technical documentation and resources

3PN1210B Drawing

Datasheet

Technical Data Sheet EN

Datasheet
