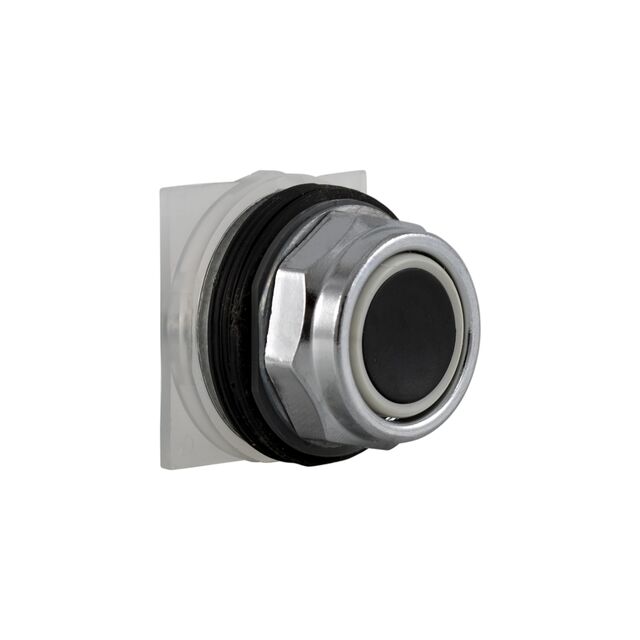

9001KR1BH2
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON 600VAC 10A 30MM TYPE K ROHS COMPLIANT: YES
9001KR1BH2
ActiveSCHNEIDER ELECTRIC
PUSHBUTTON 600VAC 10A 30MM TYPE K ROHS COMPLIANT: YES
Description
General part information
9001KR1BH2
Pushbutton Switch DPDT Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KR1BH2 |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 10 A |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Type | Standard |
