Specification	DID3A2N65

Current - Continuous Drain (Id) (Tc)	3.2 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Max)	25 nC
Input Capacitance (Ciss) (Max)	581 pF
Mounting Type	Through Hole
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C

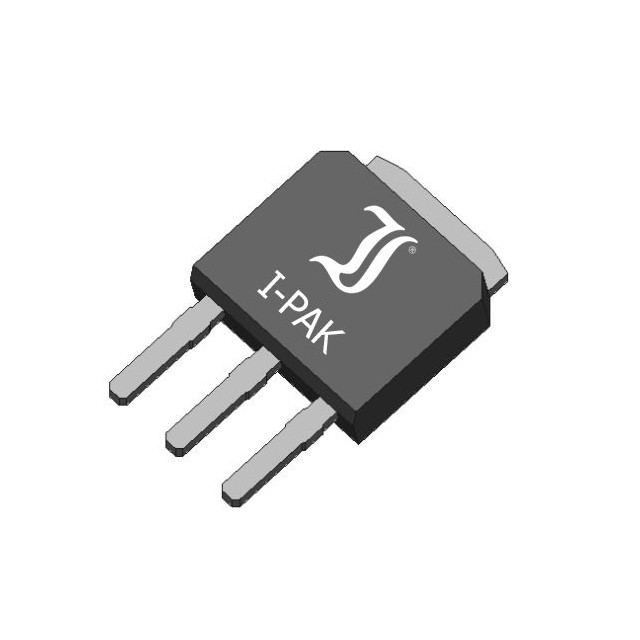

Package / Case	TO-251-3 Short Leads, TO-251AA, IPAK
Package Name	TO-251
Power Dissipation (Max)	54 W
Rds On (Max)	2.6 Ohm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	30 V
Vgs(th) (Max)	4 V
