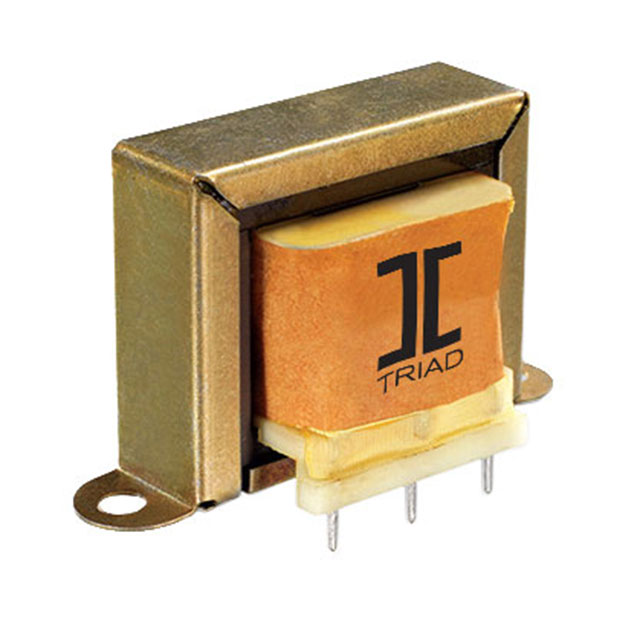

F-154XP

F-154XP

Active
Triad Magnetics

POWER TRANSFORMER 54.0VCT@0.140A 115V PCB MOUNT ROHS COMPLIANT: YES

Find alt
F-154XP

F-154XP

Active
Triad Magnetics

POWER TRANSFORMER 54.0VCT@0.140A 115V PCB MOUNT ROHS COMPLIANT: YES

Find alt

Description

General part information

F-154XP

POWER TRANSFORMER 54.0VCT@0.140A 115V PCB MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

SpecificationF-154XP
Center TapNo
Current - Output (Max) Parallel280 mA
Current - Output (Max) Series140 mA
Height - Seated (Max)41.28 mm
Mounting TypeThrough Hole
Power - Max7.5 W
Primary Winding(s)Single
Secondary Winding(s)Dual
Size / Dimension Length71.42 mm
Size / Dimension Width37.29 mm
Termination StylePC Pin
TypeLaminated Core
Voltage - Isolation1500 Vrns
Voltage - Primary115 V
Voltage - Secondary (Full Load) (Parallel)27 V
Voltage - Secondary (Full Load) (Series)54 V
Weight0.657 lb
