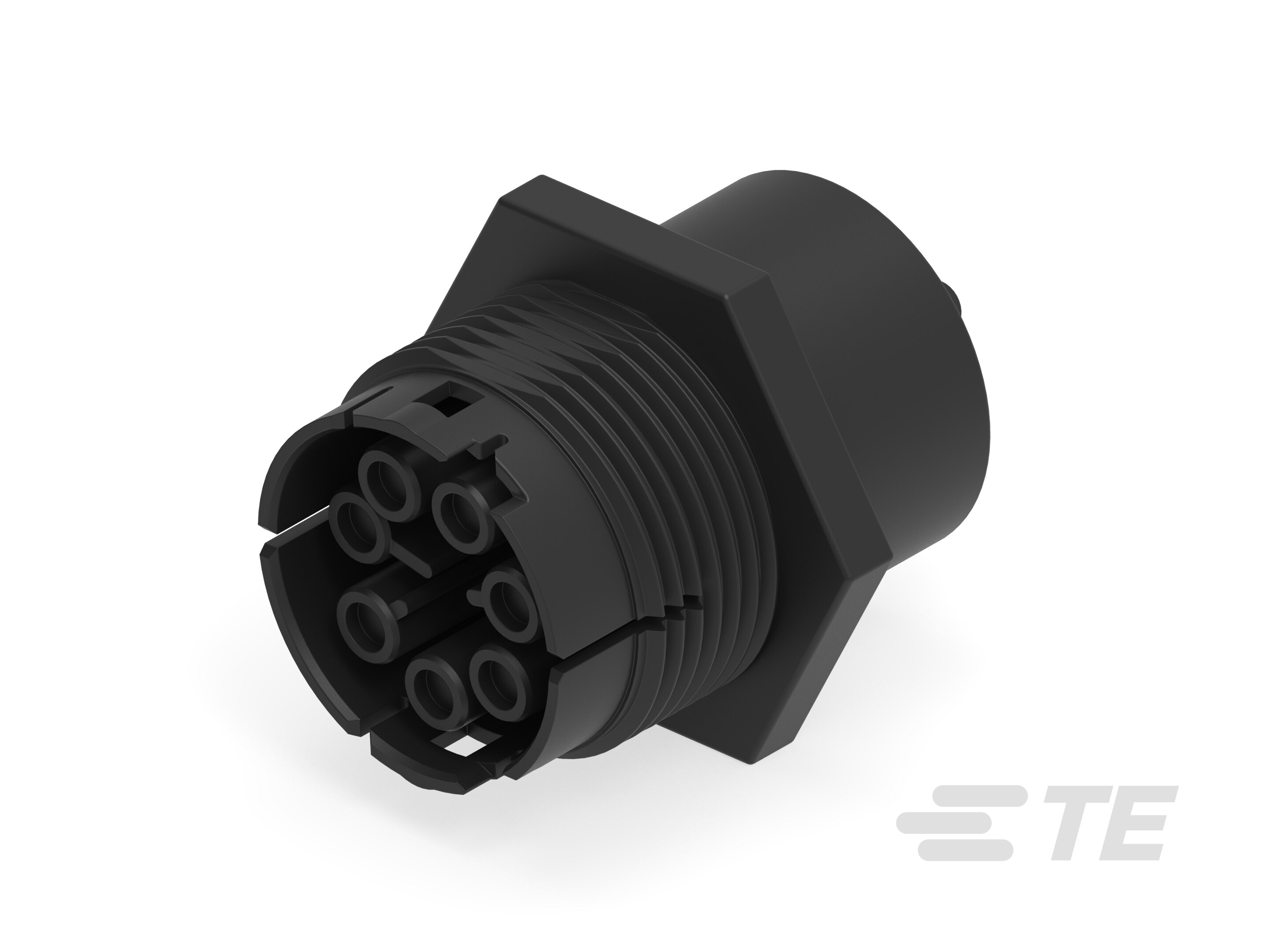

Specification	1-293687-3

Connector Type	Plug Housing for Socket Contact
Features	Keyed
Housing Color	Black
Housing Material	Nylon, Polyamide, Glass Filled, PA
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Style	Cable/Wire
Termination	Crimp

NECTOR M Series Series

Part	Housing Color	Termination	Housing Material	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Features	Style	Mounting Type	Number of Positions	Current Rating Options	Voltage Rating	Ingress Protection	Current Rating	Accessory Type	For Use With/Related Products	Color	Specifications	Material	Wire Gauge (Cross-Sectional Area)	Contact Finish	Contact Material
TE Connectivity AMP Connectors 293721-1	Natural	Crimp	Glass Filled Nylon PA Polyamide	Plug Housing for Socket Contact	-40 °C	85 °C	Keyed	Cable/Wire Cable/Wire or Board	Free Hanging (In-Line)	7
TE Connectivity AMP Connectors 2213468-1	Black	Crimp	Glass Filled PBT Polybutylene Terephthalate	Plug Housing for Socket Contact	-40 °C	85 °C	Keyed	Cable/Wire	Panel Mount	3
TE Connectivity AMP Connectors 1-293606-1	Black	Crimp	Glass Filled Nylon PA Polyamide	Plug Housing for Socket Contact	-40 °C	85 °C	Keyed	Cable/Wire	Panel Mount	3	16A 20A	400 V	IP20
TE Connectivity AMP Connectors 293616-1	Natural	Crimp	Glass Filled Nylon PA Polyamide	Receptacle Housing for Pin Contact	-40 °C	85 °C	Keyed	Cable/Wire Cable/Wire or Board	Free Hanging (In-Line)	5		400 V	IP20	20 A
TE Connectivity AMP Connectors 201501-2															Spirol Pin	M Series
TE Connectivity AMP Connectors 2213351-2															Cable Clamp	Free Hanging (In-Line) Connectors	Black	5 6 6 and 7 Positions 7 Positions Cable Dia 14mm-17mm	Glass Filled Polybutylene Terephthalate (PBT)
TE Connectivity AMP Connectors 1-293774-1	Black	Crimp	Glass Filled Nylon PA Polyamide	Receptacle Housing for Pin Contact	-40 °C	85 °C	Keyed	Cable/Wire	Panel Mount	7		400 V	IP20	20 A
TE Connectivity AMP Connectors 1-293476-2		Crimp		Contact Pin	-40 °C	85 °C		Cable/Wire Cable/Wire or Board	Free Hanging (In-Line)	1										2.5 mm²	Tin	Brass
TE Connectivity AMP Connectors 293470-1															Contact Lock Positioner	Contacts	Natural	3 Positions	Glass Filled Nylon Polyamide (PA)
TE Connectivity AMP Connectors 293468-1	Natural	Crimp	Glass Filled Nylon PA Polyamide	Plug Housing for Socket Contact	-40 °C	85 °C	Keyed	Cable/Wire Cable/Wire or Board	Free Hanging (In-Line)	3
