100024918
ActiveTelegartner Inc
SSMB PLG STR SD/CR G7 AU
100024918
ActiveTelegartner Inc
SSMB PLG STR SD/CR G7 AU
Description
General part information
100024918

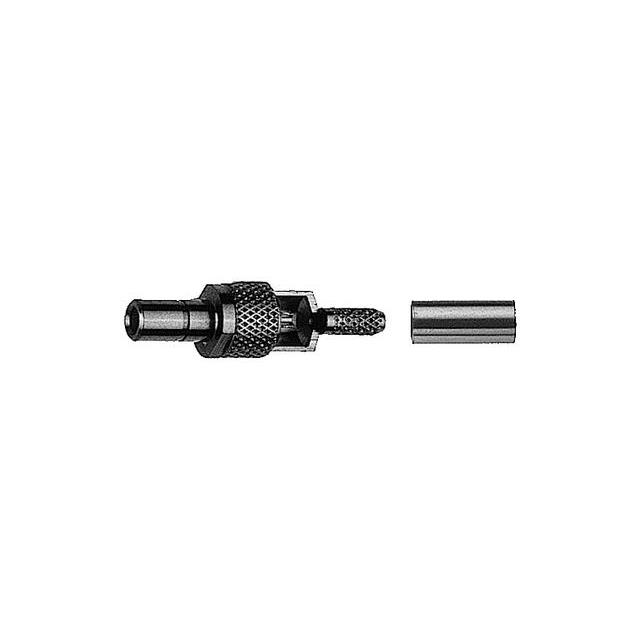

SSMB Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024918 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | RG-174, 316, 188 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SSMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 3 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 250 V |
