Description
General part information

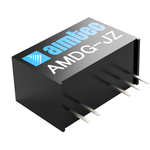

AMDG-151504A50JZ
2.28W DC/DC CONVERTER
Technical Specifications
Parameters and characteristics for this part
| Specification | AMDG-151504A50JZ |
|---|---|
| Applications | Industrial |
| Current - Output (Max) | 120 mA |
| Efficiency | 87 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 7-SIP |
| Power (Watts) | 2.28 W |
| Size / Dimension Height | 0.77 in |
| Size / Dimension Length | 0.39 in |
| Size / Dimension Width | 0.49 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 16.5 V |
| Voltage - Input (Min) | 13.5 V |
| Voltage - Output 1 | 15 V |
