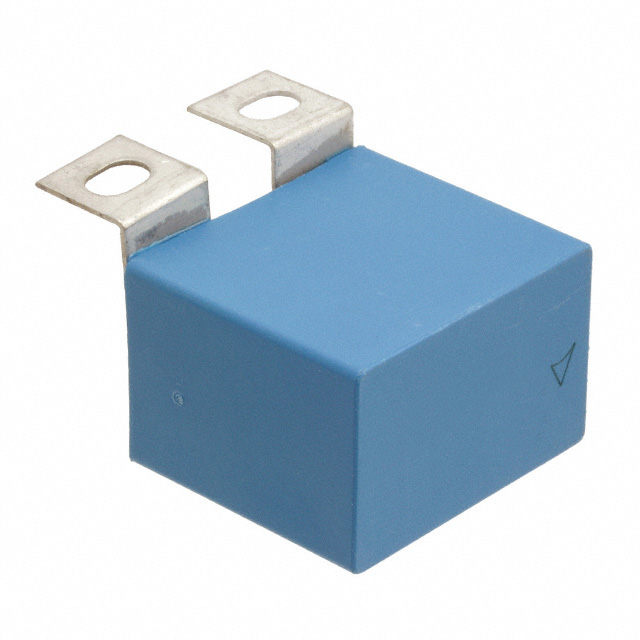

Specification	B32656S1474K561

Applications	Snubber
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	8 mOhm
Features	Low ESL
Height - Seated (Max)	1.457 in
Lead Spacing	1.004 in, 1.102 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Package / Case	Rectangular Box
Ratings	AEC-Q200
Size / Dimension Length	1.654 in
Size / Dimension Width	1.102 in
Termination	Screw Terminals
Tolerance	10 %
Voltage Rating - AC	750 VAC
Voltage Rating - DC	1700 V
