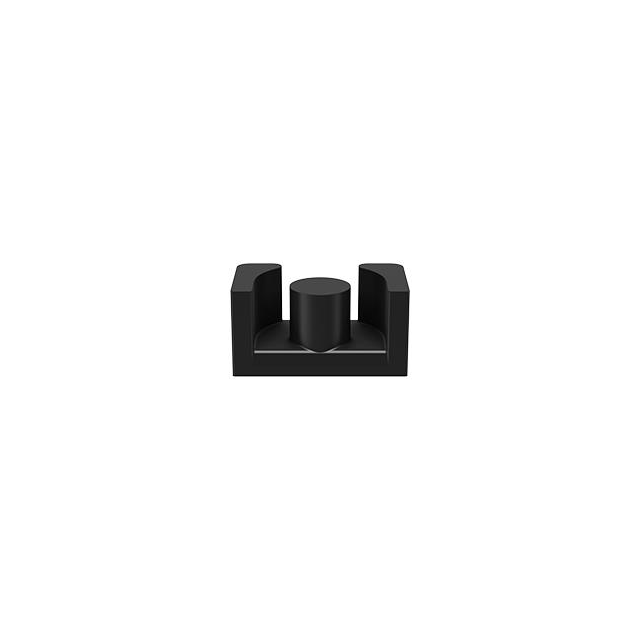

Specification	B65843P0000R045

Core Factor (ΣI/A) mm⁻¹	1.24 mm⁻¹
Core Type	EP
Effective Area (Ae)	19.5 mm²
Effective Length (le)	24.2 mm
Effective Magnetic Volume (Ve)	472 mm³
Finish	Uncoated
Height	0.256 in
Initial Permeability (µi)	3800
Length	0.042 ft
Material	N45
Minimum Core Cross Section (Amin) (mm²)	14.9 mm²
Width	0.354 in
