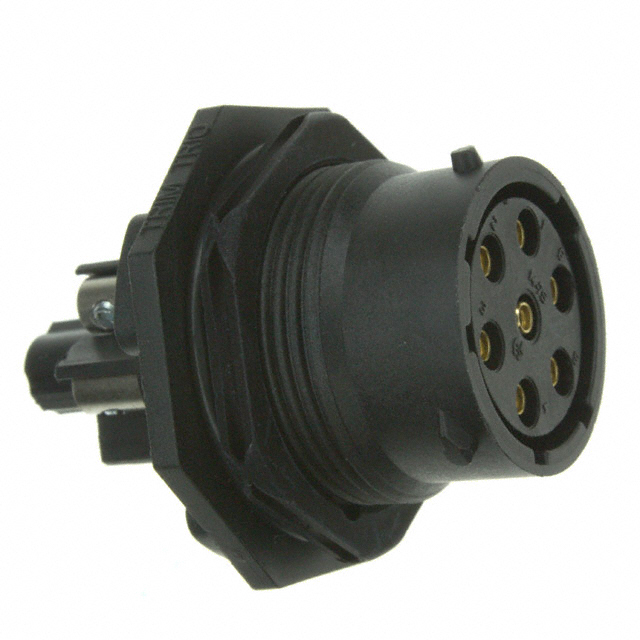

Specification	UTS7147SSCR

Applications	Energy, Telecommunications, Instrumentation, Lighting
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 µin
Contact Material	Copper Alloy
Current Rating	10 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	PA, Nylon, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	7
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	PE
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert Length	14 mm
Shell Size - Insert Width	7 mm
Shielding	Unshielded
Termination	Screw
Voltage Rating	500 V

UTS71 Series

...

Part	Termination	Mounting Feature	Primary Material	Voltage Rating	Number of Positions	Position Types	Material Flammability Rating	Features	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Color	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Contact Finish Thickness - Mating	Applications	Contact Material	Insert Material	Orientation	Current Rating	Contact Finish - Mating	Shell Material	Fastening Type	Shell Size - Insert Width	Shell Size - Insert Length	Accessory Type	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Type	Note	Contact Shape	Contact Size	Contact Type	Housing Color	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Number of Positions (Normal)	Number of Positions (Total)	Number of Positions (Power)	Contact Size (Power)
Amphenol Aerospace Operations UTS7147PSEK9	Solder	Bulkhead Front Side Nut	Plastic	500 V	7	PE	UL94 V-0	Board Lock UV Resistant	-40 °C	105 °C	Unshielded	Black	Panel Mount Through Hole	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle	16 µin	Energy Instrumentation Lighting Telecommunications	Brass	Nylon PA Polyamide	N (Normal)	10 A	Gold	Nylon Polyamide (PA)	Bayonet Lock	7 mm	14 mm
Amphenol Aerospace Operations UTS712CCRY												Yellow																Coding Ring	12	12	Trim Trio® UTS Receptacles
Amphenol Aerospace Operations UTS7183G1SNPT		Bulkhead Rear Side Nut			4	PE	UL94 V-0		-40 °C	105 °C	Unshielded		Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K	Receptacle Housing					N (Normal)			Nylon Polyamide (PA)	Bayonet Lock	3 mm	18 mm					For Female Sockets	Contacts Not Included Jam Nut Not Included	Circular	8	Crimp	Black
Amphenol Aerospace Operations UTS714E19P	Solder Cup	Bulkhead Front Side Nut	Plastic	250 V	19		UL94 V-0	UV Resistant	-40 °C	105 °C	Unshielded	Black	Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle	16 µin	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	N (Normal)	4 A	Gold	Nylon Polyamide (PA)	Bayonet Lock													19	14 S
Amphenol Aerospace Operations UTS710E7P	Solder Cup	Bulkhead Front Side Nut	Plastic	250 V	7		UL94 V-0	UV Resistant	-40 °C	105 °C	Unshielded	Black	Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle	16 µin	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	N (Normal)	6 A	Gold	Nylon Polyamide (PA)	Bayonet Lock	7 mm	10 mm
Amphenol Aerospace Operations UTS714D5P32	Solder	Bulkhead Front Side Nut	Plastic	600 V	5		UL94 V-0	Board Lock UV Resistant	-40 °C	105 °C	Unshielded	Black	Panel Mount Through Hole	Dust Tight Water Resistant Waterproof	IP68 IP69K	Male Pins Receptacle	16 µin	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	N (Normal)	12 A	Gold	Nylon Polyamide (PA)	Bayonet Lock	5 mm	14 mm
Amphenol Aerospace Operations UTS7106S		Bulkhead Front Side Nut			6		UL94 V-0		-40 °C	105 °C	Unshielded		Panel Mount	Dust Tight Water Resistant Waterproof	IP67 IP69K	Receptacle Housing					N (Normal)			Thermoplastic	Bayonet Lock	6 mm	10 mm					For Female Sockets	Contacts Not Included	Circular	20	Crimp	Black
Amphenol Aerospace Operations UTS718X2M3SNPT		Bulkhead Rear Side Nut					UL94 V-0		-40 °C	105 °C	Unshielded		Panel Mount	Dust Tight Water Resistant Waterproof	IP68 IP69K	Receptacle Housing					N (Normal)			Nylon Polyamide (PA)	Bayonet Lock					18X2		For Female Sockets	Contacts Not Included Jam Nut Not Included	Circular	16	Crimp	Black			3	5	2	8
Amphenol Aerospace Operations UTS712D10S32	Solder	Bulkhead Front Side Nut	Plastic	250 V	10		UL94 V-0	Board Lock UV Resistant	-40 °C	105 °C	Unshielded	Black	Panel Mount Through Hole	Dust Tight Water Resistant Waterproof	IP68 IP69K	Female Sockets Receptacle	16 µin	Energy Instrumentation Lighting Telecommunications	Brass	Polychloroprene	N (Normal)	4.5 A	Gold	Nylon Polyamide (PA)	Bayonet Lock	10 mm	12 mm
Amphenol Aerospace Operations UTS710CCRR												Red																Coding Ring	10	10	Trim Trio® UTS Receptacles
