PF1262-10KF1
ObsoleteBourns Inc.
RES 10K OHM 1% 20W TO126
PF1262-10KF1
ObsoleteBourns Inc.
RES 10K OHM 1% 20W TO126
Description
General part information
PF1262-10KF1

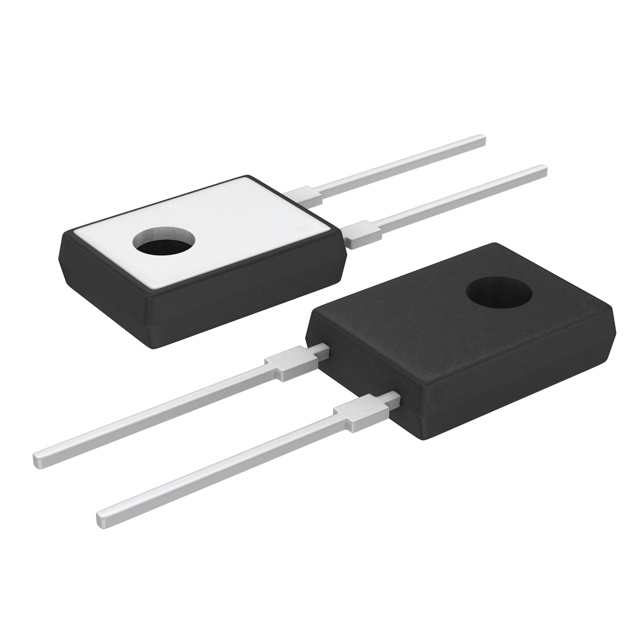

10 kOhms ±1% 20W Through Hole Resistor TO-126-2 Current Sense, Flame Proof, Safety Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PF1262-10KF1 |
|---|---|
| Composition | Thin Film |
| Features | Flame Proof, Safety, Current Sense |
| Height - Seated (Max) | 0.472 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-126-2 |
| Package Name | TO-126 |
| Power (Watts) | 20 W |
| Resistance | 10 kOhm |
| Size / Dimension Length | 0.335 in |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
