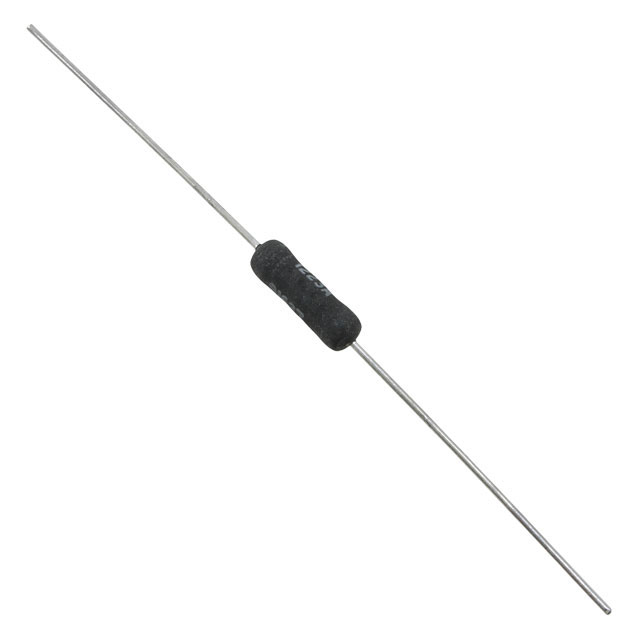

RWR82S3R32FRS70

Active

Vishay Dale

RES 3.32 OHM 1.5W 1% AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RWR82S3R32FRS70

Active

Vishay Dale

RES 3.32 OHM 1.5W 1% AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RWR82S3R32FRS70	RWR82 Series

Composition	Wirewound	Wirewound
Failure Rate	R (0.01%)	S (0.001%), R (0.01%), M (1%), P
Features	-	Non-Inductive, Military, Moisture Resistant
Number of Terminations	2	2
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	1.5 W	1.5 W
Resistance	3.32 Ohms	0.1 - 1100 Ohms
Size / Dimension [diameter]	0.078 "	0.078 "
Size / Dimension [diameter]	1.98 mm	1.98 mm
Size / Dimension [x]	0.312 in	0.312 in
Size / Dimension [x]	7.92 mm	7.92 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient	50 ppm/°C	20 - 650 ppm/°C
Tolerance	1 %	0.1 - 1 %

RWR82 Series

RES 86.6 OHM 1.5W 1% AXIAL

...

Part	Failure Rate	Power (Watts)	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Resistance	Composition	Temperature Coefficient	Supplier Device Package	Package / Case
Vishay Dale RWR82S86R6FSB12	S (0.001%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	86.6 Ohms	Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82S47R5FRBSL	R (0.01%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %		Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82S1R00FSS70	S (0.001%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	1 Ohms	Wirewound	400 ppm/°C	Axial	Axial
Vishay Dale RWR82S4530DRB12	R (0.01%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm		453 Ohms	Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82S12R1FRRSL	R (0.01%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %		Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82S21R5FRBSL	R (0.01%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	21.5 Ohms	Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82S40R2FRB12	R (0.01%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	40.2 Ohms	Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82S1180FSB12	S (0.001%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	118 Ohms	Wirewound	20 ppm/°C	Axial	Axial
Vishay Dale RWR82SR150FSRSL	S (0.001%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	0.15 Ohms	Wirewound	650 ppm/°C	Axial	Axial
Vishay Dale RWR82S6810FRS73	R (0.01%)	1.5 W	2	-55 °C	250 °C	0.078 "	1.98 mm	0.312 in	7.92 mm	1 %	681 Ohms	Wirewound	20 ppm/°C	Axial	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 5.45

Description

General part information

RWR82 Series

3.32 Ohms ±1% 1.5W Through Hole Resistor Axial Military, Moisture Resistant Wirewound
