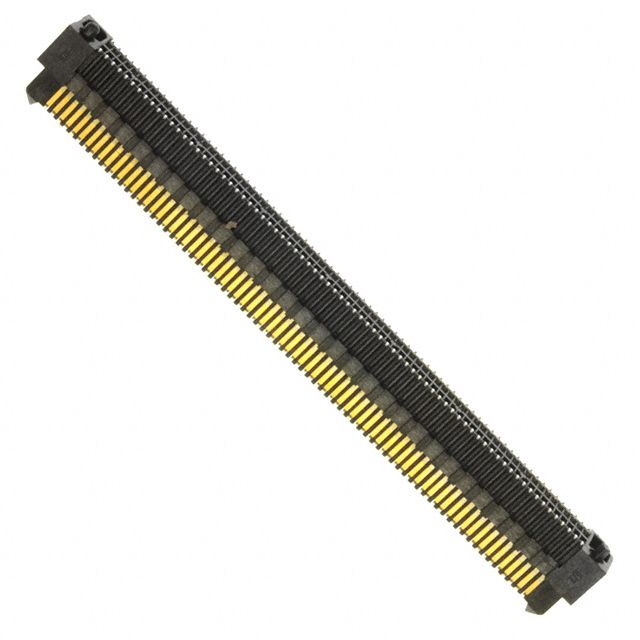

ERM8-075-05.0-S-DV

Obsolete

Samtec Inc.

CONN HDR 150POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERM8-zzz-zz.z-DV-zz Footprint

ERM8-075-05.0-S-DV

Obsolete

Samtec Inc.

CONN HDR 150POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet ERM8-zzz-zz.z-DV-zz Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-075-05.0-S-DV

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	8.91 mm
Height Above Board	0.351 in
Mated Stacking Heights	12 mm, 15 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	150
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-075 Series

Part	Number of Rows	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
Samtec Inc. ERM8-075-03-S-D-RA-L-K-TR	2	6.25 mm	0.246 in	Surface Mount Right Angle	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide Latches Mounting Flange Pick and Place	0.76 Ám	30 Áin
Samtec Inc. ERM8-075-05.0-L-DV-L-K-TR	2	8.91 mm	0.351 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide Latches Pick and Place	0.25 Ám	10 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-075-05.0-L-DV-L-TR	2	8.91 mm	0.351 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide Latches	0.25 Ám	10 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-075-05.0-S-DV	2	8.91 mm	0.351 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-075-02.0-S-DV-K-TR	2	5.97 mm	0.235 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide Pick and Place	0.76 Ám	30 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-075-01-S-D-RA-TR	2	6.25 mm	0.246 in	Surface Mount Right Angle	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide Mounting Flange	0.76 Ám	30 Áin
Samtec Inc. ERM8-075-02.0-S-DV	2	5.97 mm	0.235 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide	0.76 Ám	30 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-075-01-L-D-EM2-L-TR	2			Board Edge Straddle Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Latches	0.25 Ám	10 Áin
Samtec Inc. ERM8-075-08.0-L-DV-K-TR	2	8.91 mm	0.351 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide Pick and Place	0.25 Ám	10 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-075-08.0-L-DV-TR	2	8.91 mm	0.351 in	Surface Mount	0.8 mm	0.031 in	150	Gold	Header Center Strip Contacts	Board Guide	0.25 Ám	10 Áin	10 mm 12 mm 15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ERM8-075 Series

150 Position Connector Header, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

ERM8-zzz-zz.z-DV-zz Footprint

Datasheet
