KP01.1252.11

Active

SCHURTER Inc.

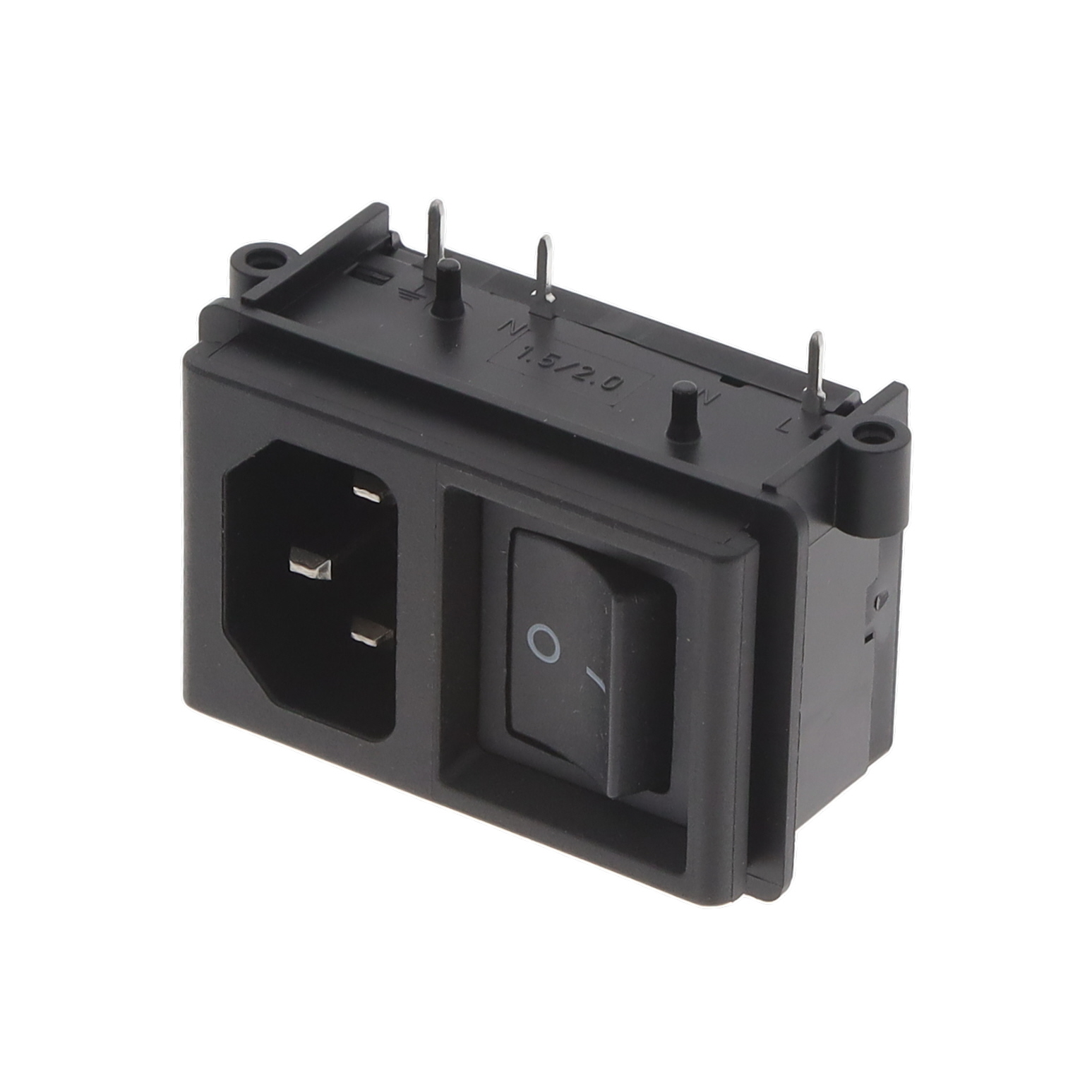

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KP01.1252.11

Accomodates a Fuse	False
Approval Agency	VDE, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions	Variable Size
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Panel Cutout Dimensions	Mounting Type	Material Flammability Rating	Panel Thickness	Panel Thickness	Filter Type	Features	Ingress Protection	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Connector Type	Accomodates a Fuse	Connector Style	Termination	Termination	Approval Agency	Switch Features
SCHURTER Inc. KP01.1252.11	Variable Size	Panel Mount, Flange, Through Hole, Right Angle	UL94 V-0	2 mm	0.079 in	Unfiltered - Commercial	Terminating Cover	IP40	10 A	250 VAC	Receptacle, Male Blades - Module		IEC 320-C14	0.189 ", 4.8 mm	Quick Connect	CCC, cURus, VDE	Switch On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
