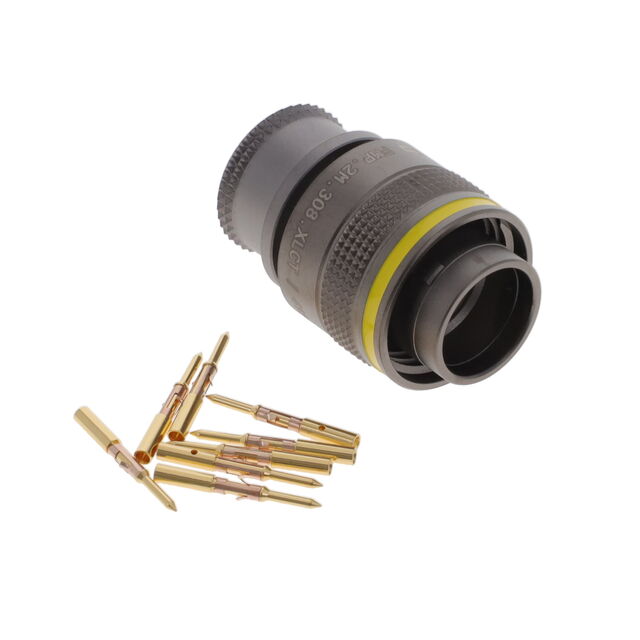

FMP.2M.308.XLCT

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMP.2M.308.XLCT	FMP.2M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.512 in	0.512 in
Cable Opening [custom]	13 mm	13 mm
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	4 - 10 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	P	P
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	308	308 - 319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 19POS GOLD CRIMP

Part	Contact Finish - Mating	Shielding	Ingress Protection	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Orientation	Number of Positions	Shell Size - Insert	Insert Material	Applications	Features	Shell Material	Termination	Contact Material	Primary Material	Cable Opening [custom]	Cable Opening [custom]
LEMO FMP.2M.319.XLCT	Gold	Shielded	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Male Pins, Plug	1 µm	39.4 µin	Gray	4 A	-55 °C	200 °C	Nickel	P	19	319	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	Coupling Nut	Aluminum Alloy	Crimp	Brass	Metal	0.512 in	13 mm
LEMO FMP.2M.310.XLCT	Gold	Shielded	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Male Pins, Plug	1 µm	39.4 µin	Gray	8 A	-55 °C	200 °C	Nickel	P	10	310	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	Coupling Nut	Aluminum Alloy	Crimp	Brass	Metal	0.512 in	13 mm
LEMO FMP.2M.308.XLCT	Gold	Shielded	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	Male Pins, Plug	1 µm	39.4 µin	Gray	10 A	-55 °C	200 °C	Nickel	P	8	308	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	Coupling Nut	Aluminum Alloy	Crimp	Brass	Metal	0.512 in	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.56

General part information

8 Position Circular Connector Plug, Male Pins Crimp
