KRF50-12-45GR
ActiveElpress Inc.
BATTERY LUG 45 50 MM M10, 1/0
KRF50-12-45GR
ActiveElpress Inc.
BATTERY LUG 45 50 MM M10, 1/0
Description
General part information
KRF50-12-45GR

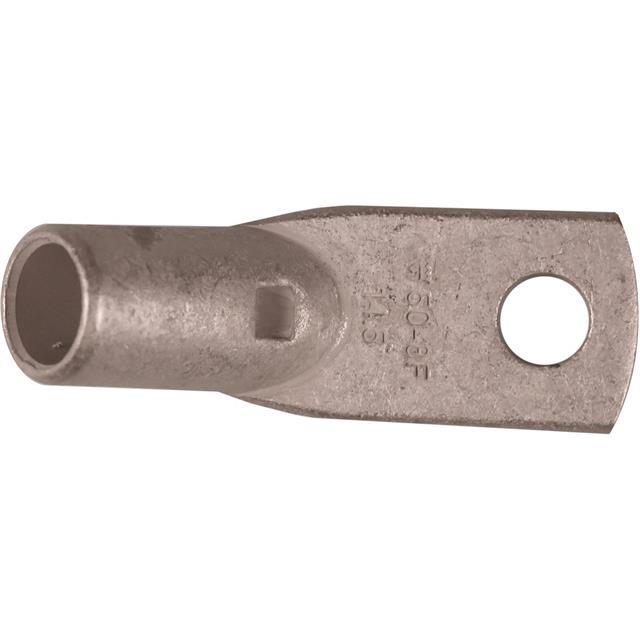

Terminal Connector Rectangular Ring, Tubular 1 AWG M12 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | KRF50-12-45GR |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | UL Listed |
| Insulation | Non-Insulated |
| Length - Overall | 2.48 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M12 Stud, M12 |
| Tab Thickness | 0.13 in |
| Terminal Type | Ring, Tubular |
| Termination | Crimp |
| Width - Outer Edges | 0.826 in |
| Wire Gauge | 1 AWG |
