ATCA-06-101M-H
ActiveAbracon LLC
FIXED IND 100UH 4A 42 MOHM TH
ATCA-06-101M-H
ActiveAbracon LLC
FIXED IND 100UH 4A 42 MOHM TH
Description
General part information
ATCA-06-101M-H

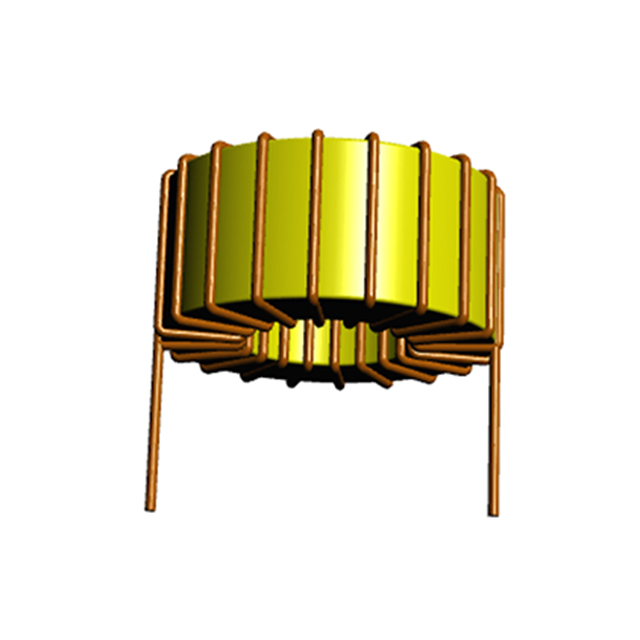

100 µH Unshielded Toroidal Inductor 4 A 42mOhm Max Radial, Horizontal (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | ATCA-06-101M-H |
|---|---|
| Current Rating | 4 A |
| DC Resistance (DCR) (Max) | 42 mOhm |
| Height - Seated (Max) | 0.63 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Horizontal (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.26 in |
| Tolerance | 20 % |
| Type | Toroidal |
