5148468-1
ActiveTE Connectivity AMP Connectors

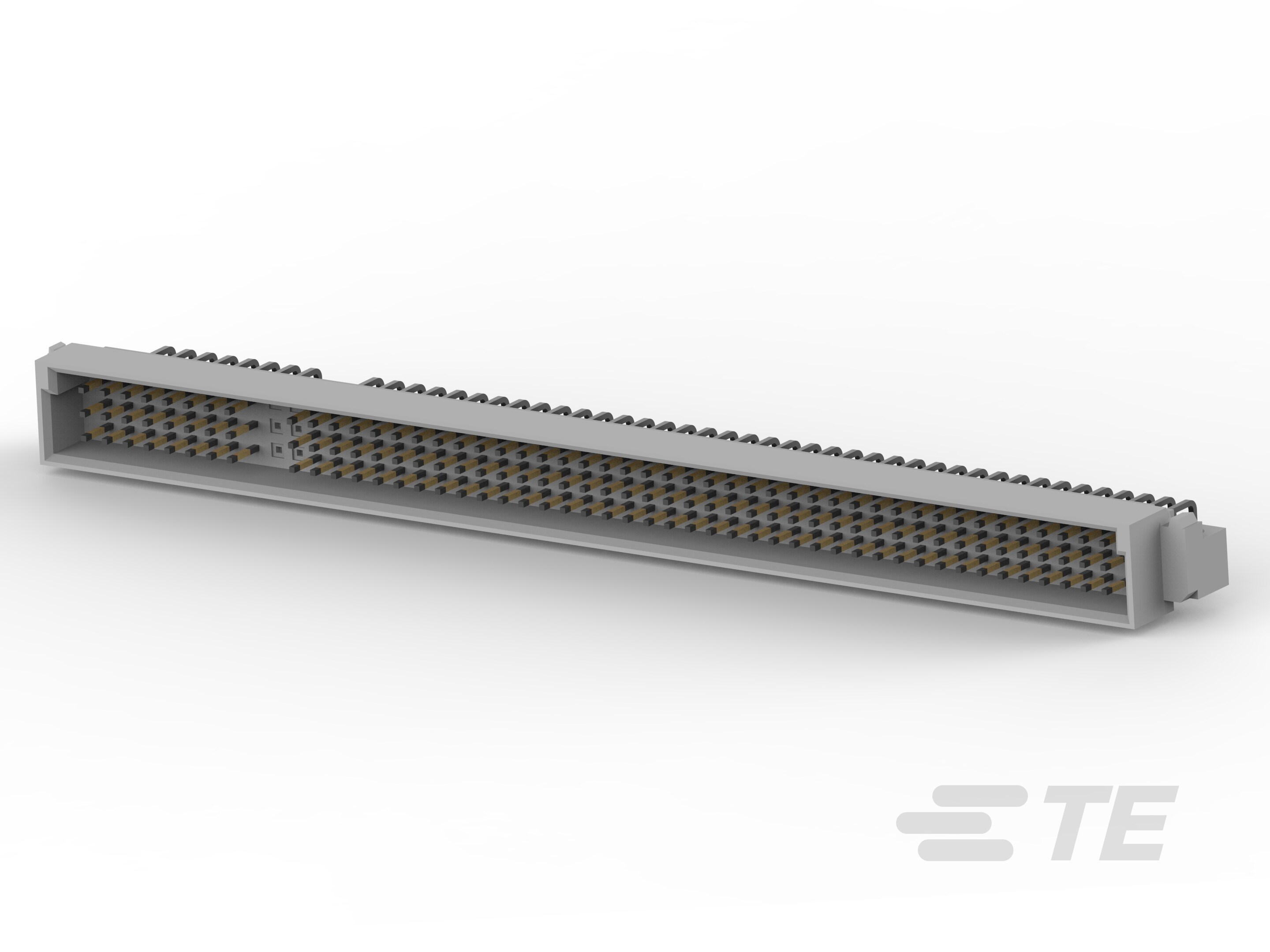

ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,144/1
5148468-1
ActiveTE Connectivity AMP Connectors
ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,144/1
Description
General part information
5148468-1
Plug, Board-to-Board, 144 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 48 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 5148468-1 |
|---|---|
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Level, Class | 2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 150 |
| Number of Positions Loaded | 144 |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Style | C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
