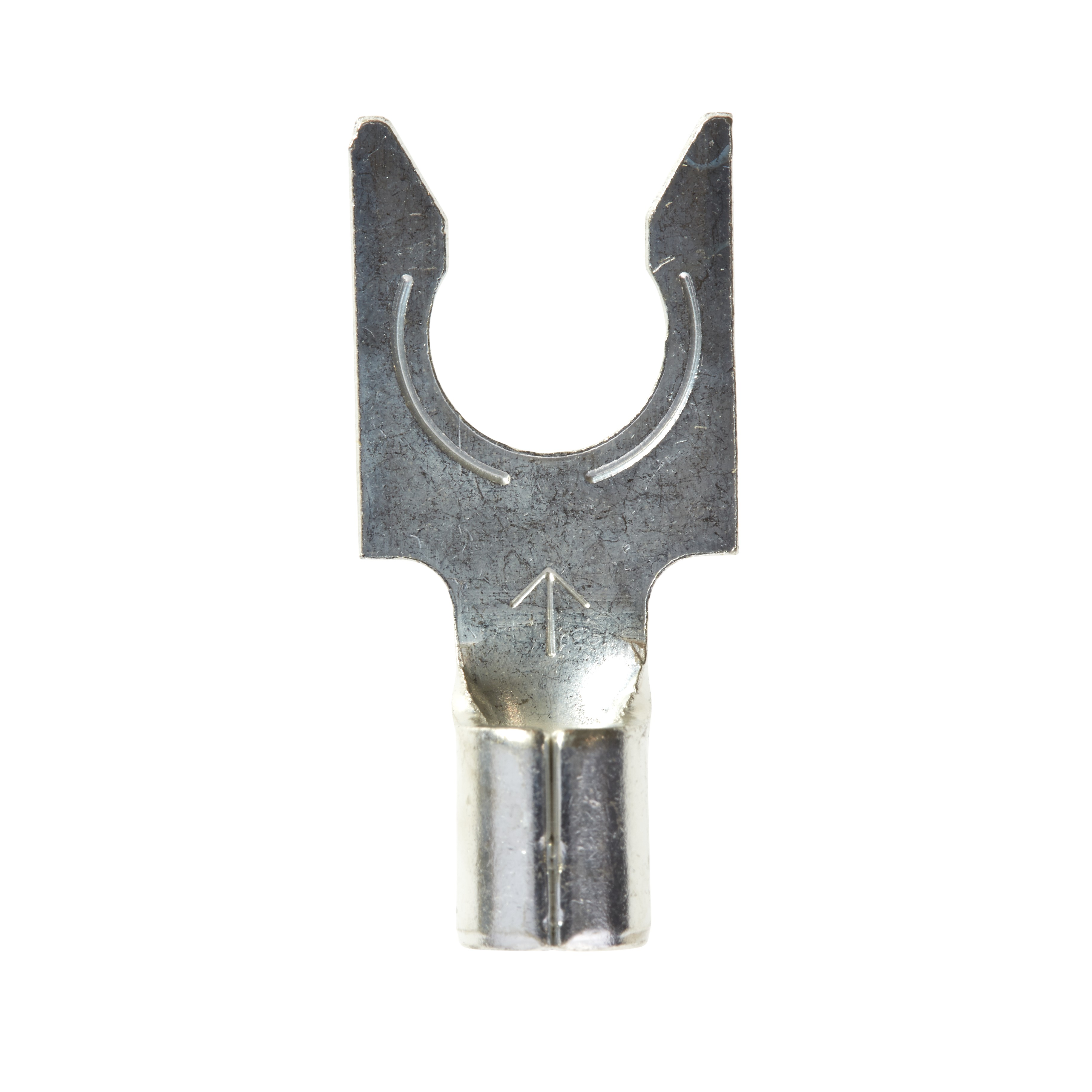

M10-14FLK
Active3M Electronic Specialty
TERMINALS D-61-204K SS-33-14-W 52894
M10-14FLK
Active3M Electronic Specialty
TERMINALS D-61-204K SS-33-14-W 52894
Description
General part information
M10-14FLK
TERMINALS D-61-204K SS-33-14-W 52894
Technical Specifications
Parameters and characteristics for this part
| Specification | M10-14FLK |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall | 0.94 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Snap, Spring |
| Termination | Crimp |
| Width - Outer Edges | 0.43 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
