Description
General part information

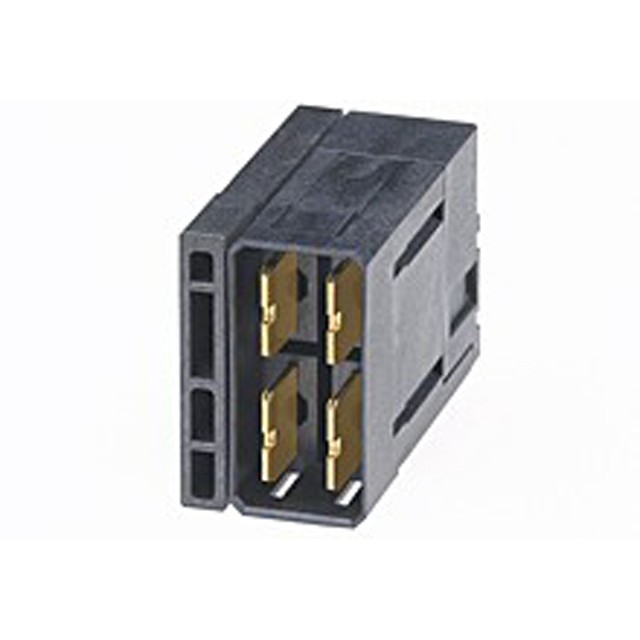

0783511001
CONN HEADER IMPACT 4POS EDGE MNT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0783511001 |
|---|---|
| Color | Black |
| Connector Style | Hold Down Left, Impact |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Power Contacts (Typical) | 4 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
