1769269
ActivePhoenix Contact
TERM BLOCK HDR 5POS 5MM
1769269
ActivePhoenix Contact
TERM BLOCK HDR 5POS 5MM
Description
General part information
1769269

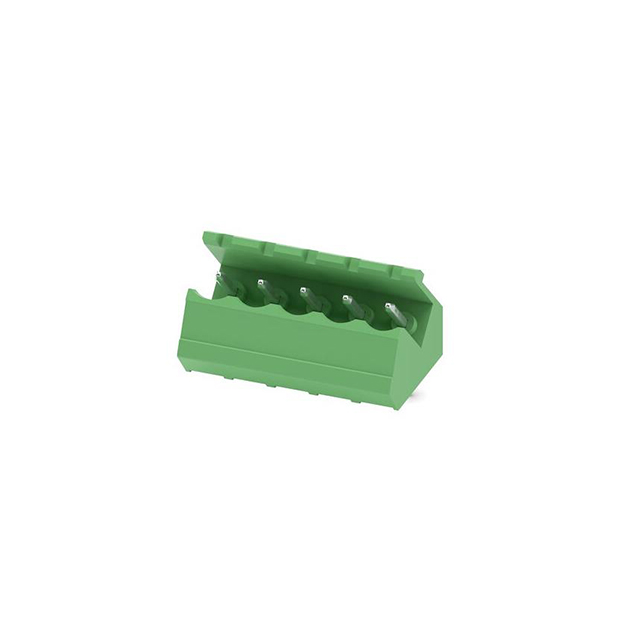

5 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 45° Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1769269 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.138 in |
| Current - IEC | 12 A |
| Current - UL | 15 A |
| Header Orientation | 45 ° |
| Housing Material | Nylon, Polyamide, PA |
| Insulation Height | 0.583 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 5 |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
