532428-4
ActiveTE Connectivity AMP Connectors
HDI RECP ASSY 2 ROW 50 POS ROHS COMPLIANT: NO
532428-4
ActiveTE Connectivity AMP Connectors
HDI RECP ASSY 2 ROW 50 POS ROHS COMPLIANT: NO
Description
General part information
532428-4

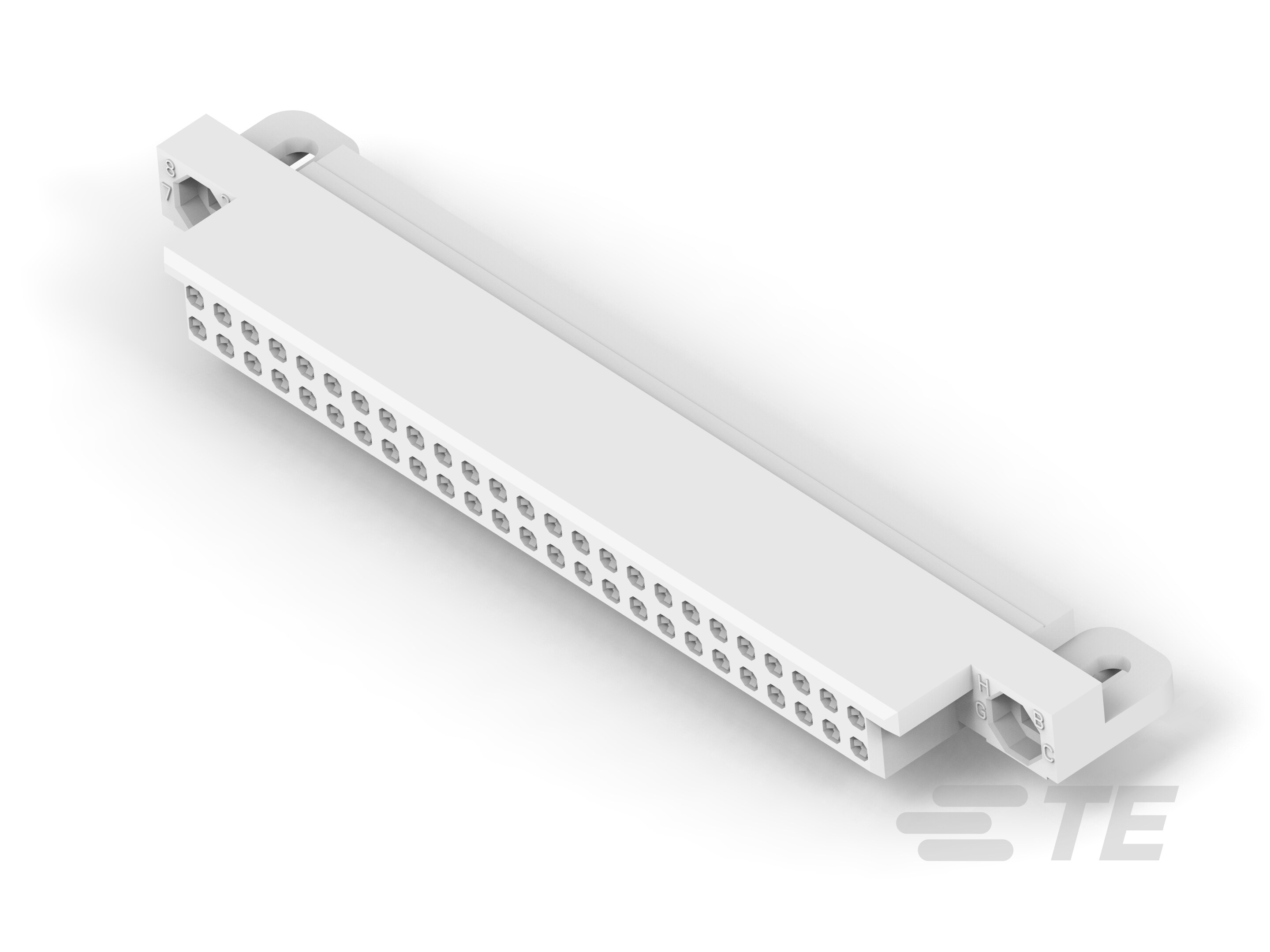

PCB Mount Receptacle, Right Angle, Board-to-Board, 50 Position, 2.54 mm [.1 in] Centerline, Gold (Au), Through Hole - Solder, Signal, Natural, Tube
Technical Specifications
Parameters and characteristics for this part
| Specification | 532428-4 |
|---|---|
| Color | Natural |
| Connector Style | High Density (HDC, HDI, HPC) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
