Specification	CMU2236-0000-000N0U0A35G

CCT (K)	3500 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max	2.64 A
Current - Test	990 mA
Flux (Typical)	4777 lm
Height - Seated (Max)	0.067 in
Lumens/Watt	143 lm/W
Mounting Type	Right Angle, Surface Mount
Package / Case	No Lead, 2-SMD
Size / Dimension Length	1.102 in
Size / Dimension Width	1.102 in
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU2236 Series

...

Part	Viewing Angle	Size / Dimension Length	Size / Dimension Width	Height	CCT (K)	CCT Description	Voltage - Forward (Vf) (Typ)	Color	Current - Test	Lens Type	Type	Current - Max	Lumens/Watt	CRI (Color Rendering Index)	Light Emitting Surface (LES) Diameter	Configuration	Luminous Flux (Typical)	Temperature - Test	Package / Case	Mounting Type	Flux (Typical)	Height - Seated (Max)
CreeLED, Inc. CMU2236-R040-000N0U0A27H	115 °	28 mm	28 mm	1.5 mm	2700 K	2-Step MacAdam Ellipse	33.7 V	Warm White	990 mA	Flat	Chip On Board (COB)	2.64 A	137 lm/W	90	22 mm	Square	4530 lm	85 °C
CreeLED, Inc. CMU2236-R040-000N0U0A30Q	115 °	28 mm	28 mm	1.5 mm	3000 K	3-Step MacAdam Ellipse	33.7 V	Warm White	990 mA	Flat	Chip On Board (COB)	2.64 A	140 lm/W	90	22 mm	Square	4618 lm	85 °C

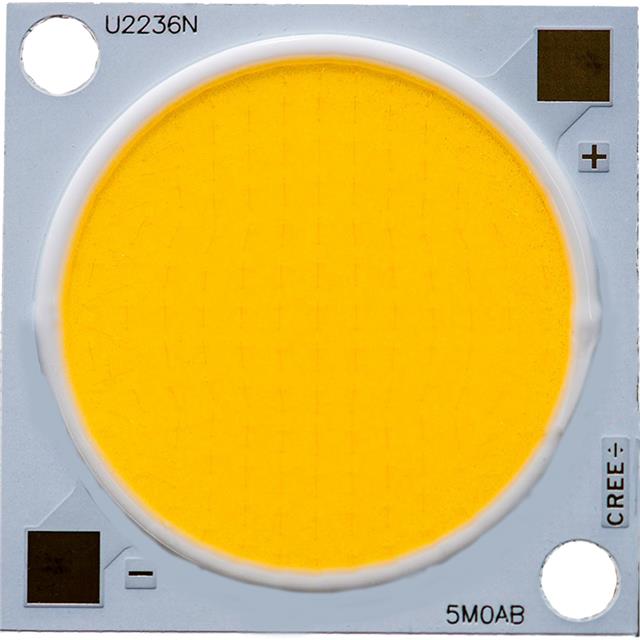

CreeLED, Inc. CMU2236-0000-000N0U0A57G	115 °	1.102 in	1.102 in		5700 K	3-Step MacAdam Ellipse	33.7 V	Cool White	990 mA			2.64 A	148 lm/W	90					2-SMD No Lead	Right Angle Surface Mount	4945 lm	0.067 in
CreeLED, Inc. CMU2236-R040-000N0U0A27G	115 °	28 mm	28 mm	1.5 mm	2700 K	3-Step MacAdam Ellipse	33.7 V	Warm White	990 mA	Flat	Chip On Board (COB)	2.64 A	137 lm/W	90	22 mm	Square	4530 lm	85 °C
CreeLED, Inc. CMU2236-R040-00PN0U0A30Q	115 °	28 mm	28 mm	1.5 mm	3000 K		33.7 V	Warm White	990 mA	Flat	Chip On Board (COB)	2.64 A		90	22 mm	Square		85 °C
CreeLED, Inc. CMU2236-R040-000N0H0A30H	115 °	28 mm	28 mm	1.5 mm	3000 K	2-Step MacAdam Ellipse	33.7 V	Warm White	990 mA	Flat	Chip On Board (COB)	2.64 A	164 lm/W	80	22 mm	Square	5419 lm	85 °C
CreeLED, Inc. CMU2236-R040-000N0U0A35H	115 °	28 mm	28 mm	1.5 mm	3500 K	2-Step MacAdam Ellipse	33.7 V	Warm White	990 mA	Flat	Chip On Board (COB)	2.64 A	145 lm/W	90	22 mm	Square	4777 lm	85 °C
CreeLED, Inc. CMU2236-0000-000N0H0A30G	115 °	1.102 in	1.102 in		3000 K	3-Step MacAdam Ellipse	33.7 V	Warm White	990 mA			2.64 A	162 lm/W	80					2-SMD No Lead	Right Angle Surface Mount	5419 lm	0.067 in
CreeLED, Inc. CMU2236-R040-000N0H0A40G	115 °	28 mm	28 mm	1.5 mm	4000 K	3-Step MacAdam Ellipse	33.7 V	Neutral White	990 mA	Flat	Chip On Board (COB)	2.64 A	168 lm/W	80	22 mm	Square	5557 lm	85 °C
CreeLED, Inc. CMU2236-0000-000N0U0A35H	115 °	1.102 in	1.102 in		3500 K	2-Step MacAdam Ellipse	33.7 V	Warm White	990 mA			2.64 A	143 lm/W	90					2-SMD No Lead	Right Angle Surface Mount	4777 lm	0.067 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CMU2236-0000-000N0U0A35G | Datasheet
