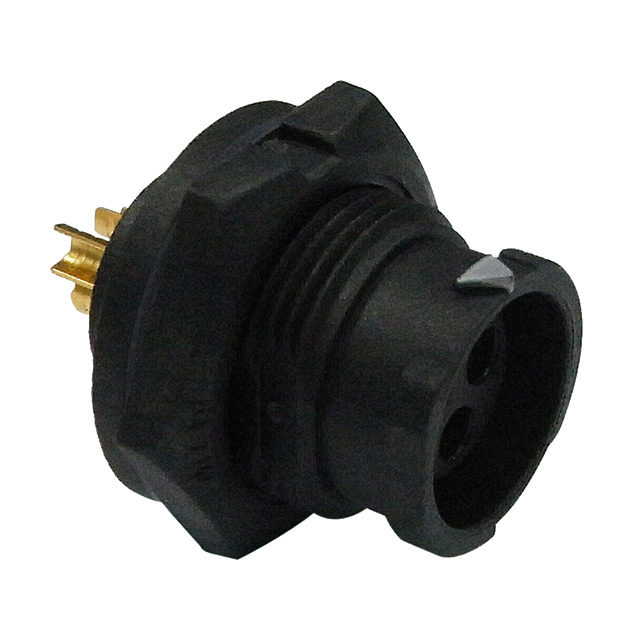

Specification	CB-04PMFS-QC8001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	10 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Glass Filled, PA, Polyamide, Nylon
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	Data
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Solder Cup

X-Lok Series

...

Part	Cable Type	1st Connector Number of Positions	Usage	1st Connector Orientation	1st Connector Mounting Type	1st Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Length	Color	Assembly Configuration	1st Connector Gender	2nd Connector Type	1st Connector Number of Positions Loaded	Shielding	Cable Material	1st Connector Shell Size - Insert	Fastening Type	Connector Type	Features	Mounting Type	1st Connector Position Types	Termination	Number of Positions	Orientation	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert	Shell Material	Shell Finish	Voltage Rating	Voltage Rating (Type)	Primary Material	Current Rating	Contact Material	Insert Material	Mounting Feature	Number of Contacts	Style
McGill Microwave Systems PWC-03AMFM-LL7E01	Round	3 positions	Industrial Environments	Keyed	Free Hanging (In-Line)	Receptacle	Dust Tight Waterproof	IP67	3.28 ft	Black	Standard	Female Sockets	Wire Leads	All	Unshielded	Polyvinyl Chloride (PVC)
McGill Microwave Systems 8A-03AMMM-SR7A03	Round	3 positions	Industrial Environments	Keyed	Free Hanging (In-Line)	Plug Right Angle	Dust Tight Waterproof	IP67	9.84 ft	Black	Standard	Male Pins	Wire Leads	All	Unshielded	Polyvinyl Chloride (PVC)	M8
McGill Microwave Systems PWC-03BFFM-LL7E01	Round	3 positions	Industrial Environments	Keyed	Free Hanging (In-Line)	Plug	Dust Tight Waterproof	IP67	3.28 ft	Black	Standard	Female Sockets	Wire Leads	All	Unshielded	Polyvinyl Chloride (PVC)
McGill Microwave Systems RJ-5EAMMM-LR7D05							Dust Tight Waterproof	IP67		Black					Shielded			Threaded	Housing for Prewired RJ45 Cordset	Strain Relief	Free Hanging (In-Line) Right Angle
McGill Microwave Systems PWCU-04AFFM-LL7A01	Round	4 positions	Industrial Environments	Keyed	Free Hanging (In-Line)	Plug	Dust Tight Waterproof	IP67	3.28 ft	Black	Standard	Female Sockets	Wire Leads	All	Shielded	Polyvinyl Chloride (PVC)
McGill Microwave Systems UPG06-UPG06-A10
McGill Microwave Systems BB-02AMMM-QL8E01	Round	2 positions	Industrial Environments	Keyed	Free Hanging (In-Line)	Receptacle	Dust Tight Waterproof	IP68	3.28 ft	Black	Standard	Male Pins	Wire Leads	All	Unshielded	Polyvinyl Chloride (PVC)	B					Power
McGill Microwave Systems CB-05AFFM-QR8D01	Round	5 positions	Industrial Environments	Keyed	Free Hanging (In-Line)	Receptacle Right Angle	Dust Tight Waterproof; NMEA 2000	IP68	3.28 ft	Black	Standard	Female Sockets	Wire Leads	All	Shielded	Polyvinyl Chloride (PVC)	C
McGill Microwave Systems M12A-03PFFC-SH8B15							Dust Tight Water Resistant Waterproof	IP68 IP69K		Silver					Shielded			Threaded	Female Sockets Receptacle		Panel Mount		Wire Leads	3	A	Gold	85 °C	-25 °C	M12-3	Zinc Alloy	Nickel	250 V	DC	Metal	4 A	Copper Alloy	Glass Filled Nylon PA Polyamide	Bulkhead Rear Side Nut
McGill Microwave Systems RCP-5UAMMM-TRM7A01	Round Cable								3.28 ft	Black					Unshielded				Ethernet Plug Right Angle to Cable RJ45	Circular Bayonet Coupling Molded Plugs	Free Hanging (In-Line)			8															8	Cat5e Industrial Environments - IP67
