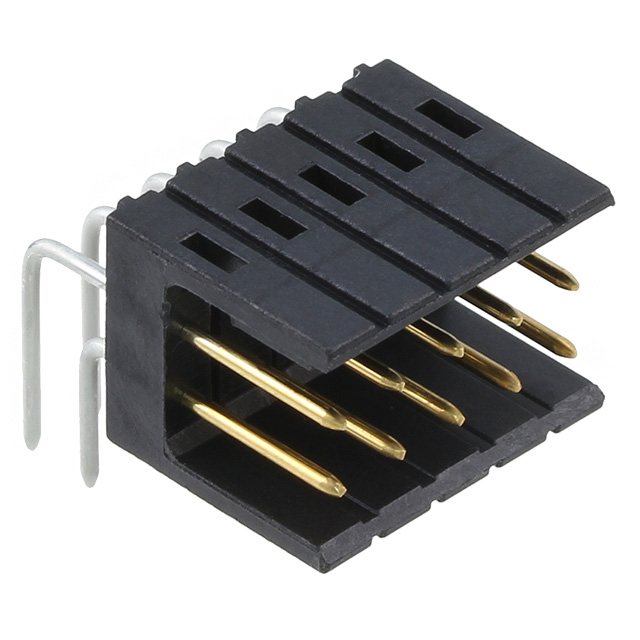

826470-5
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
826470-5
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 826470-5 | 826470 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Color | Black | Black |
| Insulation Height | 8.61 mm | 8.61 mm |
| Insulation Height | 0.339 " | 0.339 " |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 8 - 22 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826470 Series
CONN HEADER R/A 12POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Contact Type | Contact Length - Post | Contact Length - Post [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Insulation Color | Number of Positions | Mounting Type | Contact Finish - Post | Style | Insulation Height | Insulation Height | Number of Positions Loaded | Fastening Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Shape | Termination | Material Flammability Rating | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 826470-6 | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Header | 105 ░C | -55 °C | Shrouded - 2 Wall | Male Pin | 3.2 mm | 0.126 in | 2.54 mm | 0.1 in | Gold | Black | 12 | Through Hole, Right Angle | Tin | Board to Board, Cable | 8.61 mm | 0.339 " | All | Latch Holder | 2 | 0.1 in | 2.54 mm | Square | Solder | UL94 V-0 | Phosphor Bronze | |
TE Connectivity AMP Connectors 826470-5 | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Header | 105 ░C | -55 °C | Shrouded - 2 Wall | Male Pin | 3.2 mm | 0.126 in | 2.54 mm | 0.1 in | Gold | Black | 10 | Through Hole, Right Angle | Tin | Board to Board, Cable | 8.61 mm | 0.339 " | All | Latch Holder | 2 | 0.1 in | 2.54 mm | Square | Solder | UL94 V-0 | Phosphor Bronze | |
TE Connectivity AMP Connectors 1-826470-1 | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Header | 105 ░C | -55 °C | Shrouded - 2 Wall | Male Pin | 3.2 mm | 0.126 in | 2.54 mm | 0.1 in | Gold | Black | 22 positions | Through Hole, Right Angle | Tin | Board to Board, Cable | 8.61 mm | 0.339 " | All | Latch Holder | 2 | 0.1 in | 2.54 mm | Square | Solder | UL94 V-0 | Phosphor Bronze | |
TE Connectivity AMP Connectors 826470-8 | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Header | 105 ░C | -55 °C | Shrouded - 2 Wall | Male Pin | 3.2 mm | 0.126 in | 2.54 mm | 0.1 in | Gold | Black | Through Hole, Right Angle | Tin | Board to Board, Cable | 8.61 mm | 0.339 " | All | Latch Holder | 2 | 0.1 in | 2.54 mm | Square | Solder | UL94 V-0 | Phosphor Bronze | 16 | |
TE Connectivity AMP Connectors 826470-4 | 3 µm | 118.1 µin | 0.099 µm | 3.9 µin | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Header | 105 ░C | -55 °C | Shrouded - 2 Wall | Male Pin | 3.2 mm | 0.126 in | 2.54 mm | 0.1 in | Gold | Black | 8 | Through Hole, Right Angle | Tin | Board to Board, Cable | 8.61 mm | 0.339 " | All | Latch Holder | 2 | 0.1 in | 2.54 mm | Square | Solder | UL94 V-0 | Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.89 | |
| 10 | $ 1.68 | |||
| 125 | $ 1.52 | |||
| 500 | $ 1.51 | |||
Description
General part information
826470 Series
Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
