TJ1451570000G
ActiveMcGill Microwave Systems

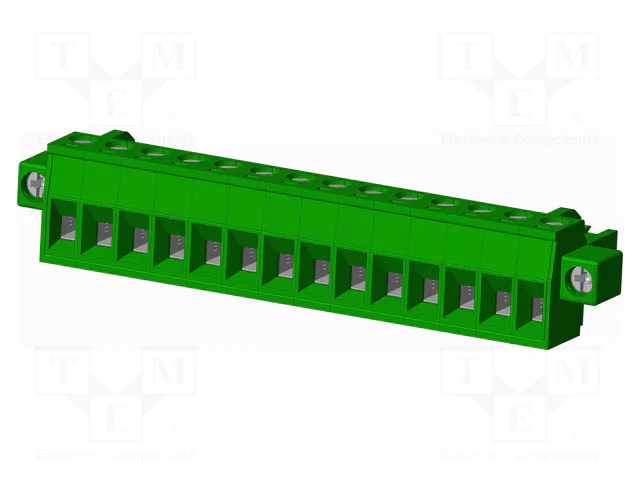

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X14
TJ1451570000G
ActiveMcGill Microwave Systems
CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X14
Description
General part information
TJ1451570000G
CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X14
Technical Specifications
Parameters and characteristics for this part
| Specification | TJ1451570000G |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 20 A |
| Features | Retention Latches (Non-Wire Side), Mating Flange |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 14 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 5.08 mm |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 14 |
| Termination Style | Screw |
| Type | Female Sockets, Plug |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
