530286-2

Obsolete

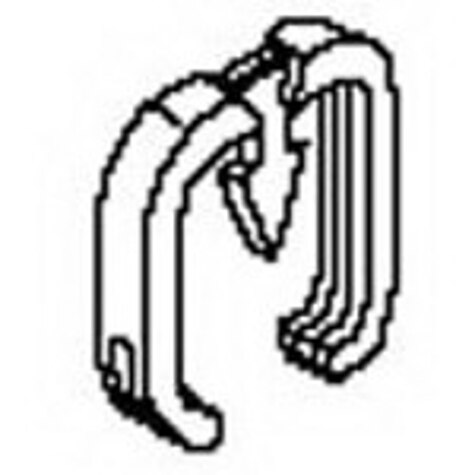

STANDARD CARD EDGE CONNECTORS TWIN LEAF KEYING PLUG .150CL

Obsolete

STANDARD CARD EDGE CONNECTORS TWIN LEAF KEYING PLUG .150CL

Description

General part information

Standard Card Edge Connectors TYPE B 125P RA CARD

Parameters and characteristics for this part

Specification	530286-2

Accessory Type	Keying Plug (Intercontact)
Color	Natural
For Use With/Related Products	Twin Leaf Series
Material	Nylon

Standard Card Edge Connectors TYPE B 125P RA CARD

Part	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Material	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish
TE Connectivity AMP Connectors 531478-4	18 AWG	22 AWG	Phosphor Bronze	Non-Gendered	Crimp	30 µin	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
