B82141A1474J000
ActiveEPCOS - TDK Electronics
FIXED IND 470UH 90MA 12 OHM TH
B82141A1474J000
ActiveEPCOS - TDK Electronics
FIXED IND 470UH 90MA 12 OHM TH
Description
General part information
B82141A1474J000

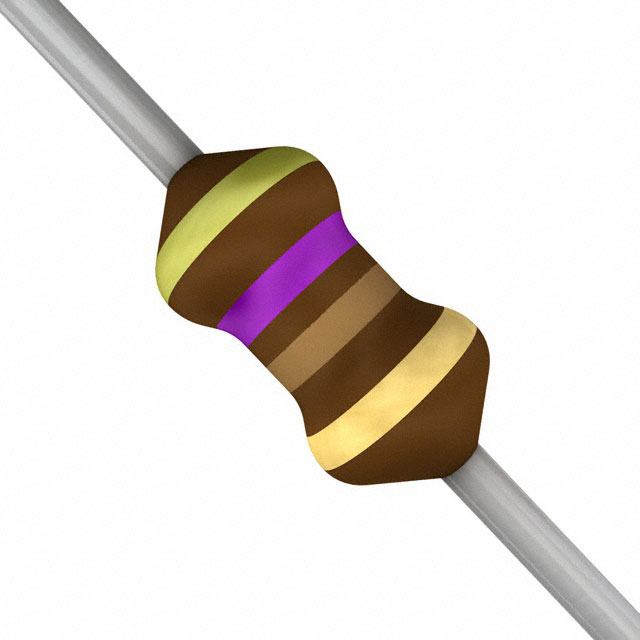

470 µH Unshielded Drum Core, Wirewound Inductor 90 mA 12Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82141A1474J000 |
|---|---|
| Current Rating | 0.09 A |
| DC Resistance (DCR) (Max) | 12 Ohm |
| Frequency - Self Resonant | 2.3 MHz |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 796 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.118 in |
| Size / Dimension Length | 0.268 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
