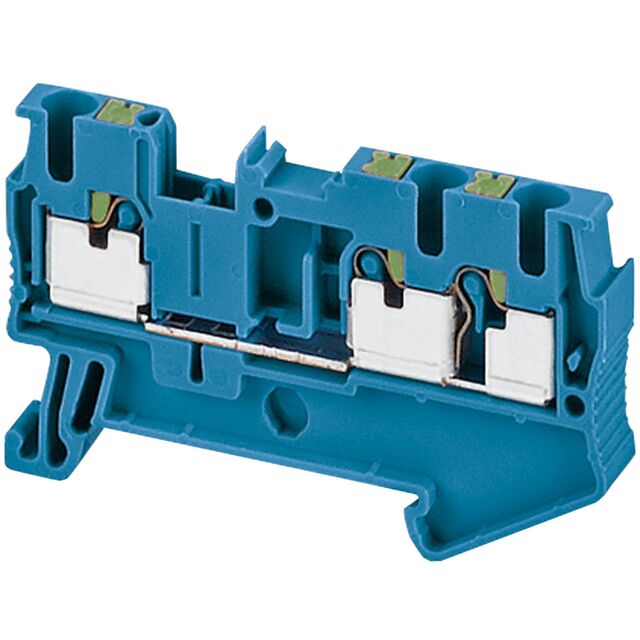

Specification	NSYTRP23BL

Color	Blue
Current - IEC	24 A
Current - UL	20 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	3
Stripping Length	10 mm
Terminal Width	5.2 mm
Termination Style	Push In
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.14 mm²
