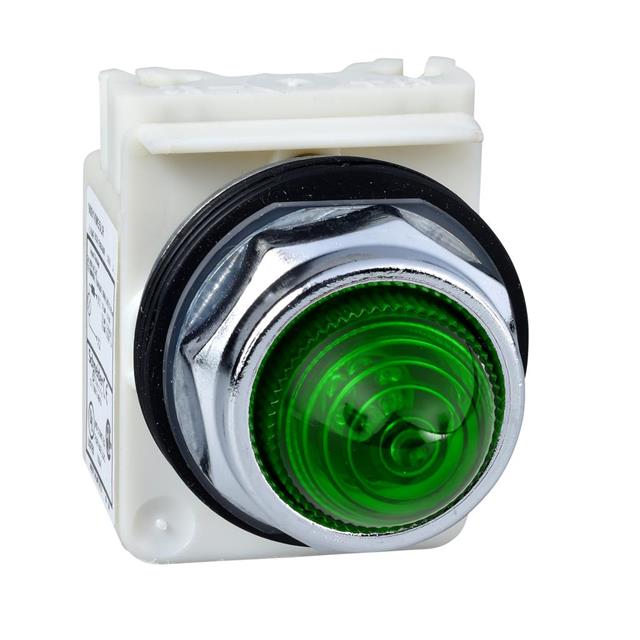

9001KP38S5G9
ActiveSCHNEIDER ELECTRIC
PILOT LIGHT 120V 30MM TYPE K +OP
9001KP38S5G9
ActiveSCHNEIDER ELECTRIC
PILOT LIGHT 120V 30MM TYPE K +OP
Description
General part information
9001KP38S5G9
Incandescent Panel Indicator 120V Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KP38S5G9 |
|---|---|
| Ingress Protection | 2, 6, IP66, 1, 13, 4, 3, NEMA 3R, 12 |
| Lens Color | Red |
| Lens Style | Round, Domed Top |
| Panel Cutout Dimension | 1.18 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | Incandescent |
| Voltage | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
