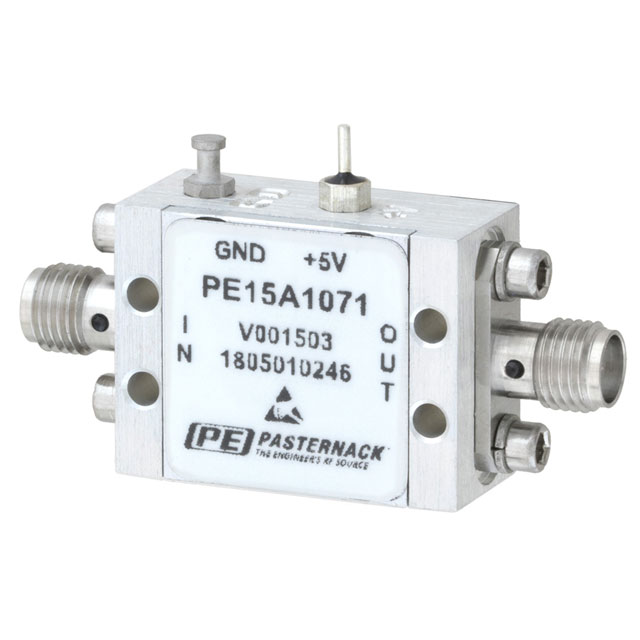

PE15A1071
ActivePasternack
IC RF AMP GPS 6GHZ-18GHZ MODULE
PE15A1071
ActivePasternack
IC RF AMP GPS 6GHZ-18GHZ MODULE
Description
General part information
PE15A1071
RF Amplifier IC General Purpose 6GHz ~ 18GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A1071 |
|---|---|
| Current - Supply | 65 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 6 GHz |
| Gain | 26 dB |
| Noise Figure | 1.9 dB |
| P1dB | 11 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Test Frequency (Maximum) | 18 GHz |
| Test Frequency (Minimum) | 6 GHz |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
