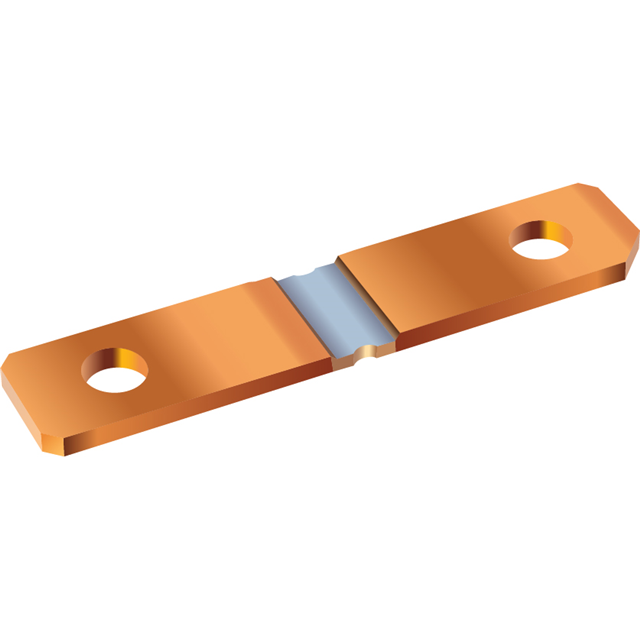

CSM2F-8518-L050J02
ActiveBourns Inc.
SHUNTMETRIC 8518 L050 5% 50W TC5
CSM2F-8518-L050J02
ActiveBourns Inc.
SHUNTMETRIC 8518 L050 5% 50W TC5
Description
General part information
CSM2F-8518-L050J02
50 µOhms ±5% 36W Shunt, Battery Specialized Resistor ±200ppm/°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CSM2F-8518-L050J02 |
|---|---|
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 36 W |
| Resistance | 50 µOhms |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
| Type | Battery, Shunt |
