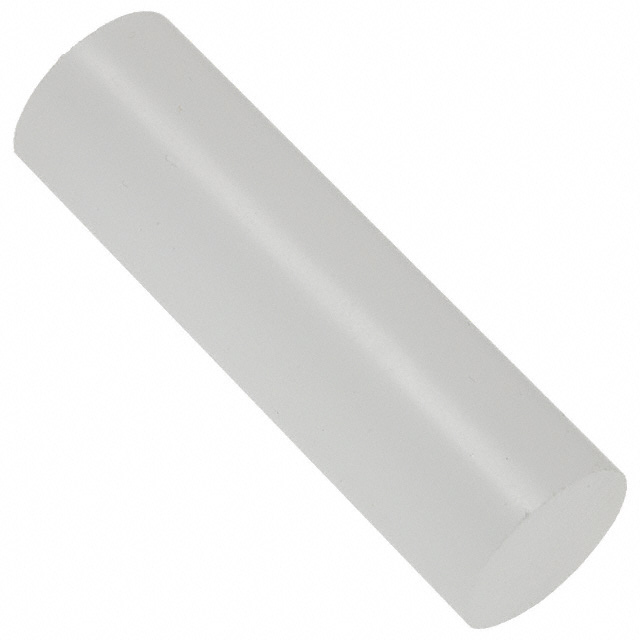

Specification	3764-TC

For Use With/Related Products	HSE/LSE Plastics
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature (Maximum)	120 °F
Type	Hot Melt

3764 Series

Part	Shrouding	Insulation Material	Contact Length - Post	Termination	Current Rating	Material Flammability Rating	Insulation Height	Mounting Type	Contact Finish - Post	Connector Type	Style	Features	Number of Rows	Number of Positions Loaded	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Contact Type	Pitch - Mating	Contact Finish - Mating	Number of Positions	Contact Length - Mating	Row Spacing - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Shape	Contact Finish Thickness - Post	Overall Contact Length	Storage/Refrigeration Temperature (Maximum)	Shelf Life	Shelf Life Start	Type	For Use With/Related Products	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
3M Electronic Specialty 3764-5302	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.155 in	Solder	1.75 A	UL94 V-0	0.34 in	Right Angle Through Hole	Tin-Lead	Header	Board Board or Cable	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Long	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	30 µin	Square	200 µin
3M Electronic Specialty 3764-6503UG	Shrouded - 4 Wall	Glass Filled Polybutylene Terephthalate (PBT) Polyester	0.155 in	Solder	1 A	UL94 V-0	0.68 in	Through Hole	Tin-Lead	Header	Board Cable/Wire	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Short	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	15 µin	Square	200 µin	0.695 in
3M Electronic Specialty 3764-6302-UG	Shrouded - 4 Wall	Glass Filled Polybutylene Terephthalate (PBT) Polyester	0.112 in	Solder	1 A	UL94 V-0	0.68 in	Through Hole	Tin-Lead	Header	Board Cable/Wire	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Long	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	15 µin	Square	200 µin	0.652 in
3M Electronic Specialty 3764-5503UG	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.155 in	Solder	1 A	UL94 V-0	0.34 in	Right Angle Through Hole	Tin-Lead	Header	Board Board or Cable	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Short	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	15 µin	Square	200 µin
3M Electronic Specialty 3764B-CLEAR-PELLET-22LB												Clear																		120 °F	24 Months	Date of Shipment	Hot Melt	Hot Melt Applicator
3M Electronic Specialty 3764-5503	Shrouded - 4 Wall	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.155 in	Solder	1.75 A	UL94 V-0	0.34 in	Right Angle Through Hole	Tin-Lead	Header	Board Board or Cable	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Short	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	30 µin	Square	200 µin
3M Electronic Specialty 3764-6205	Shrouded - 4 Wall	Glass Filled Polybutylene Terephthalate (PBT) Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.61 in	Wire Wrap	1 A	UL94 V-0	0.68 in 0.968 in	Through Hole	Gold	Header	Board Cable/Wire	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Short	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	30 µin	Square		1.15 in						125 V	Flash	Flash
3M Electronic Specialty 3764-6303	Shrouded - 4 Wall	Glass Filled Polybutylene Terephthalate (PBT) Polyester	0.155 in	Solder	1 A	UL94 V-0	0.68 in	Through Hole	Tin-Lead	Header	Board Cable/Wire	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Long	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	30 µin	Square	200 µin	0.695 in
3M Electronic Specialty 3764-5305	Shrouded - 4 Wall	Glass Filled Polybutylene Terephthalate (PBT) Polyester	0.61 in	Wire Wrap	1 A	UL94 V-0	0.34 in	Right Angle Through Hole	Gold	Header	Board Board or Cable	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Long	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	30 µin	Square									Flash	Flash
3M Electronic Specialty 3764-5202	Shrouded - 4 Wall	Glass Filled Polybutylene Terephthalate (PBT)	0.112 in	Solder	1.75 A	UL94 V-0	0.34 in	Right Angle Through Hole	Tin-Lead	Header	Board Board or Cable	Keying Slot Mounting Flange	2	All	Copper Alloy	-55 °C	105 °C	Latch Lock/Eject Hooks Short	Male Pin	0.1 in	Gold	64	0.24 in	0.1 in	Black	30 µin	Square	200 µin
