022560120
ActiveRose Enclosures
BOX FIBERGLASS 23.62"L X 9.84"W
022560120
ActiveRose Enclosures
BOX FIBERGLASS 23.62"L X 9.84"W
Description
General part information
022560120

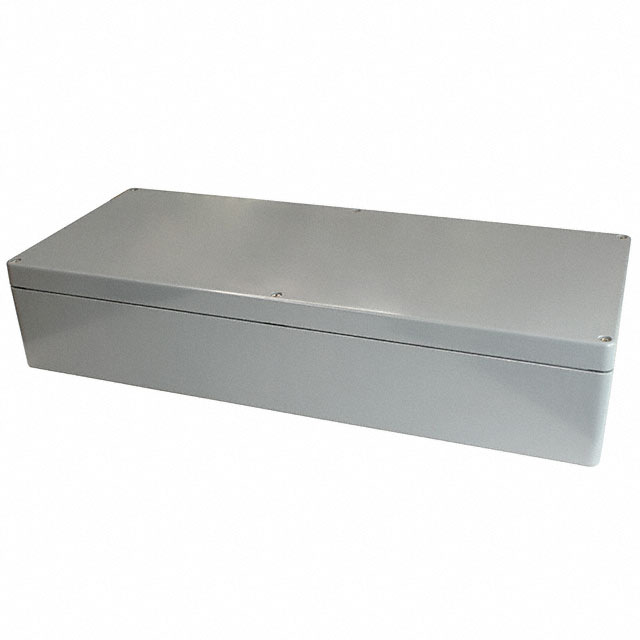

Box Fiberglass/Polyester Gray Cover Included 23.622" L x 9.843" W (600.00mm x 250.00mm) X 4.764" (121.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 022560120 |
|---|---|
| Area (L x W) | 233 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 4.764 in |
| Material | Fiberglass, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 23.622 in |
| Size / Dimension Width | 9.843 in |
| Thickness | 0.236 in |
| Weight | 12 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
