Description
General part information
X3LEEJNANF-40.000000

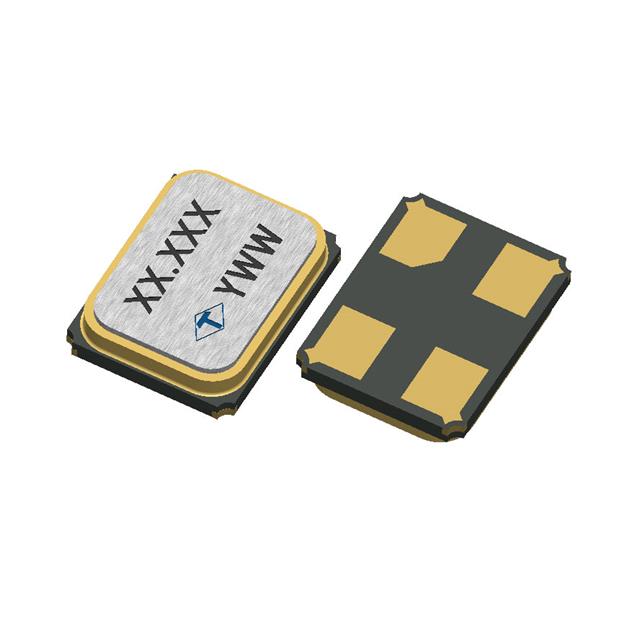

40 MHz ±30ppm Crystal 6pF 150 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | X3LEEJNANF-40.000000 |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohm |
| Frequency | 40 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.018 in |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 1.6 mm |
| Package Name | 4-SMD |
| Package Width | 1.2 mm |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.047 in |
| Type | MHz Crystal |
