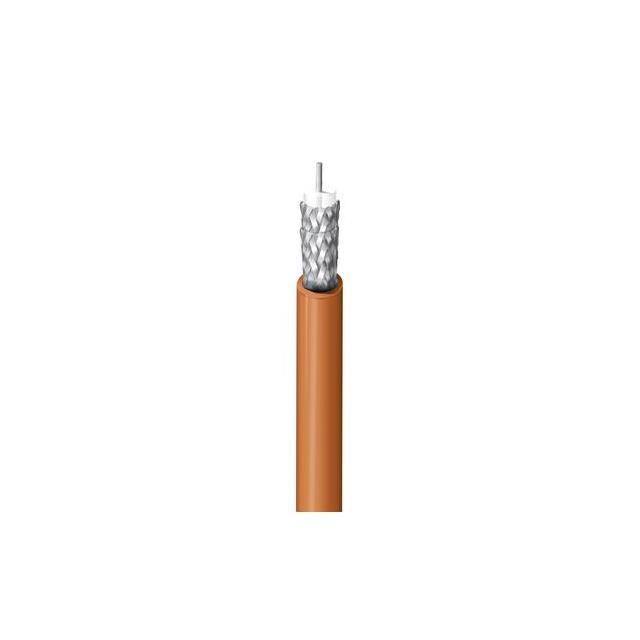

83242 001100

Obsolete

Belden Inc.

RG-142B/U COAX

Search across all available documentation for this part.

Obsolete

Belden Inc.

RG-142B/U COAX

Technical Specifications

Parameters and characteristics for this part

Specification	83242 001100

Cable Group	RG-142
Cable Type	Coaxial - Plenum
Conductor Material	Silver Coated, Steel, Copper Covered
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.95 mm
Dielectric Diameter [diameter]	0.116 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	UV Resistant
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Brown
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	95 %
Shield Material	Copper, Silver Coated
Shield Type	Double Braid
Usage	Aerospace
VoP, Velocity of Propagation	70
Wire Gauge	19 AWG

Part	Features	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Group	Length [x]	Length [x]	VoP, Velocity of Propagation	Conductor Material	Dielectric Material	Cable Type	Usage	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Impedance	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Shield Type	Length	Length
Belden Inc. 83242 001100	UV Resistant	Brown	Fluorinated Ethylene-Propylene (FEP)	0.195 in	4.95 mm	RG-142	100 ft	30.48 m	70	Copper Covered Silver Coated Steel	Polytetrafluoroethylene (PTFE)	Coaxial - Plenum	Aerospace	Copper Silver Coated	2.95 mm	0.116 in	95 %	50 Ohms	19 AWG	200 °C	-70 °C	Solid	Double Braid
Belden Inc. 83242 001500	UV Resistant	Brown	Fluorinated Ethylene-Propylene (FEP)	0.195 in	4.95 mm	RG-142			70	Copper Covered Silver Coated Steel	Polytetrafluoroethylene (PTFE)	Coaxial - Plenum	Aerospace	Copper Silver Coated	2.95 mm	0.116 in	95 %	50 Ohms	19 AWG	200 °C	-70 °C	Solid	Double Braid	152.4 m	6000 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial - Plenum Cable 19 AWG RG-142 100.0' (30.48m) 50 Ohms
