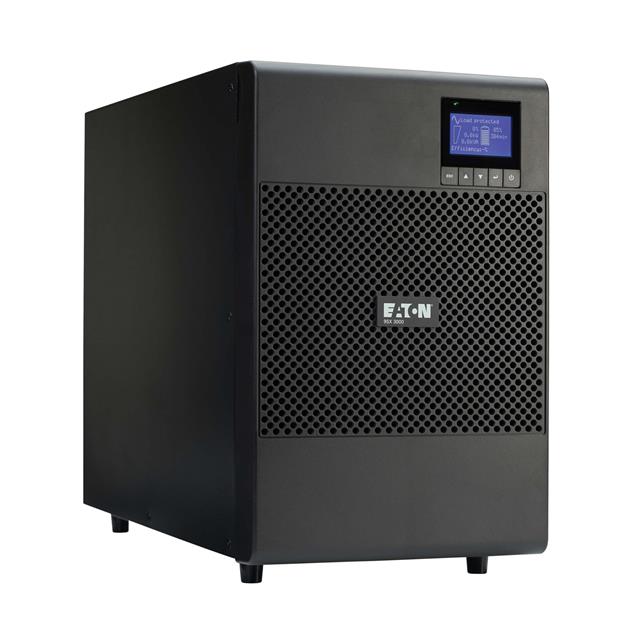

9SX3000G
ActiveEaton Tripp Lite
EATON 9SX 3000VA 2700W 208V ONLI
9SX3000G
ActiveEaton Tripp Lite
EATON 9SX 3000VA 2700W 208V ONLI
Description
General part information
9SX3000G
EATON 9SX 3000VA 2700W 208V ONLI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9SX3000G |
|---|---|
| AC Outlets (Count) | 4 count |
| Applications | General Purpose, Industrial Control |
| Approval Agency | cUL, UL |
| Backup Time - Max Load | 3 minutes |
| Cord Length | 8 ft |
| Form | Tower |
| Height | 10.2 in |
| Input Connector | NEMA L6-20P |
| Media Lines Protected | RS-232 |
| Output Connector | IEC 320-C13 |
| Output Connector Pin Count | 4 |
| Power - Rated (VA) | 3 kVA |
| Power - Rated (W) | 2.7 kW |
| Size / Dimension Length | 28.4 in |
| Size / Dimension Width | 17.3 in |
| Type | Online (Double Conversion) |
| Voltage - Input | 208 VAC |
| Voltage - Output | 208V, 220V, 200V, 230V, 250V, 240V |
| Voltage - Output (1) | 200 V |
| Voltage - Output (2) | 208 V |
| Voltage - Output (3) | 220 V |
| Voltage - Output (4) | 230 V |
| Voltage - Output (5) | 240 V |
| Voltage - Output (6) | 250 V |
