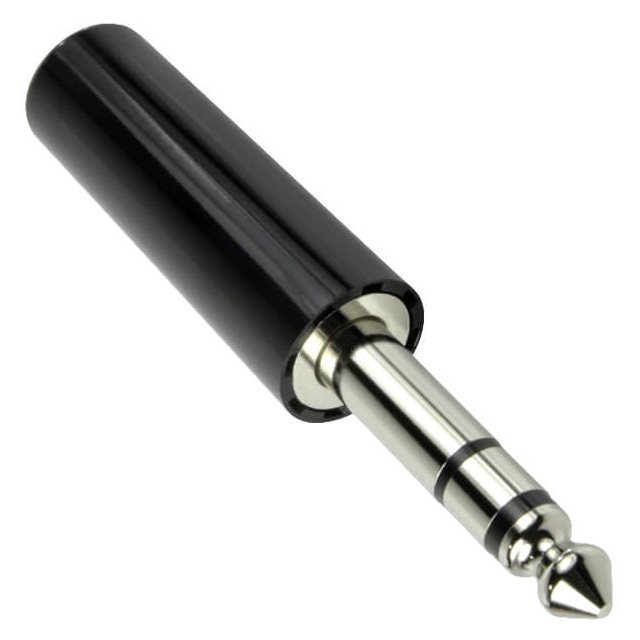

SP-6330A
ActiveSame Sky (Formerly CUI Devices)
AUDIO PLUG, 6.3 MM, STRAIGHT, 3
SP-6330A
ActiveSame Sky (Formerly CUI Devices)
AUDIO PLUG, 6.3 MM, STRAIGHT, 3
Description
General part information
SP-6330A
6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-6330A |
|---|---|
| Actual Diameter | 0.25 in |
| Body Color | Black, Silver |
| Body Material | Brass |
| Cable Opening | 0.272 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 1 A |
| Features | Cover |
| Gender | Male |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Includes | Cover, Connector |
| Includes Total Count | 2 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Insulation Color | Black |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.22 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 3 Contacts |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VAC |
