LCCA30205-FT10
ActivePasternack
N MALE TO N FEMALE BULKHEAD USIN
LCCA30205-FT10
ActivePasternack
N MALE TO N FEMALE BULKHEAD USIN
Description
General part information
LCCA30205-FT10

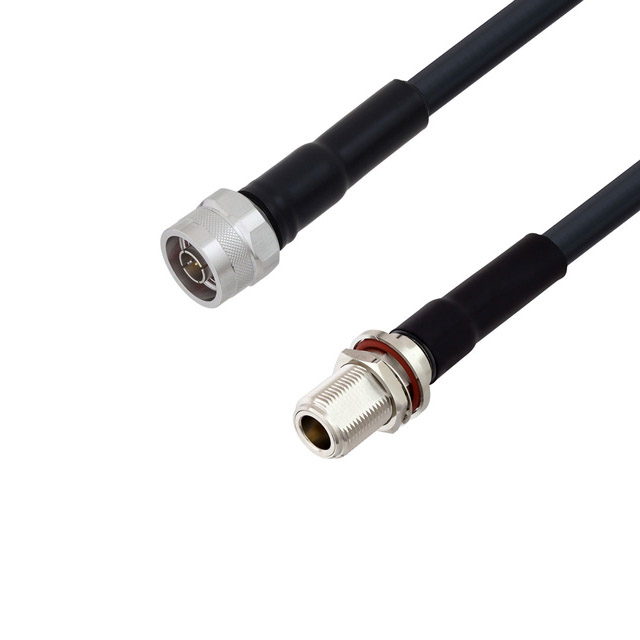

Cable Assembly Coaxial N-Type to N-Type LMR 400 DB 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30205-FT10 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR DB |
| Cable Type Size | 400 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 120 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
