109D825X9060C2
ActiveVishay Dale
CAPACITOR,8.2UF,60VDC,10-% TOL,10+% TOL
109D825X9060C2
ActiveVishay Dale
CAPACITOR,8.2UF,60VDC,10-% TOL,10+% TOL
Description
General part information
109D825X9060C2

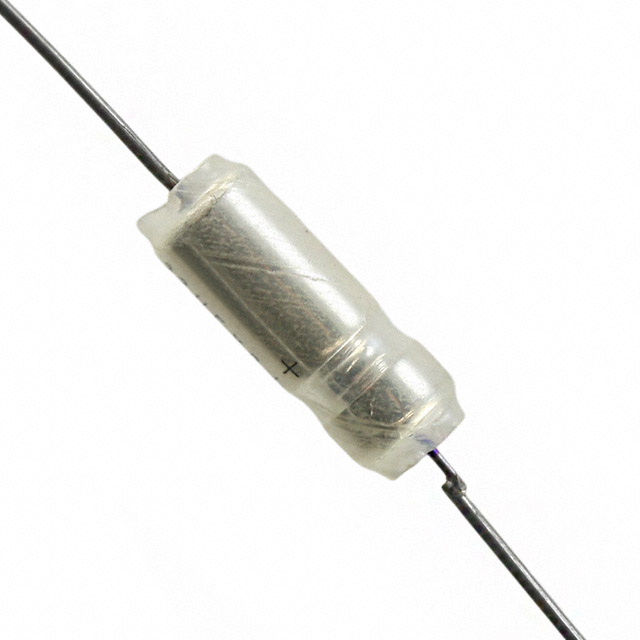

8.2 µF Hermetically Sealed Tantalum Capacitors 60 V Axial 8Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | 109D825X9060C2 |
|---|---|
| Capacitance | 8.2 µF |
| ESR (Equivalent Series Resistance) | 8 Ohm |
| Features | Wet Tantalum |
| Manufacturer Size Code | C |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.219 in |
| Size / Dimension Length | 0.608 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed, Elastomer Sealed |
| Voltage - Rated | 60 VDC |
