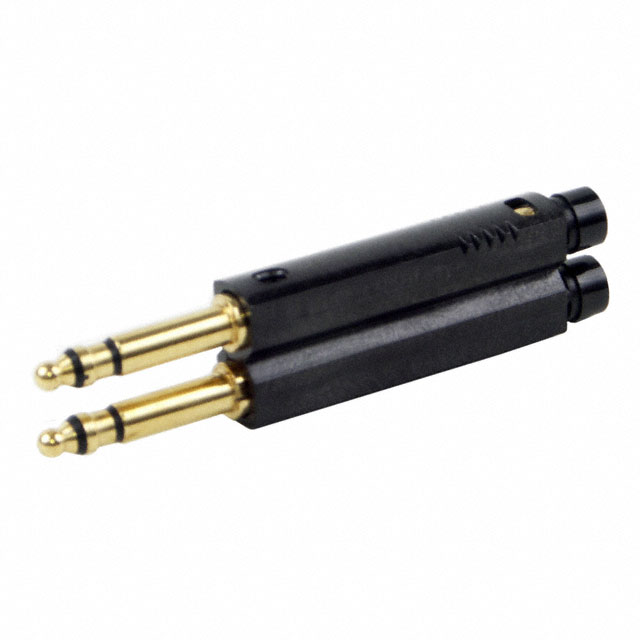

TT263
ObsoleteSWITCHCRAFT/CONXALL
CONN PLUG TWIN STEREO 4.39MM
TT263
ObsoleteSWITCHCRAFT/CONXALL
CONN PLUG TWIN STEREO 4.39MM
Description
General part information
TT263
4.39mm (0.173") Phone Plug, Twin Stereo (3 Conductor, TRS) Connector Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | TT263 |
|---|---|
| Actual Diameter | 0.173 in |
| Body Color | Black, Gold |
| Conductors per Set | 3 |
| Connector Type | Twin, Phone Plug |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Natural |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | Connectors, Screws, Handle |
| Includes Total Count | 5 pcs |
| Industry Recognized Mating Diameter | 4.39 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 0.865 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Sets | 2 |
| Screws Quantity | 2 pcs |
| Shielding | Unshielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Screw |
| Total Contacts | 6 |
